Multi-functional Flaxseed Oil Press

Multi-functional Oil Press

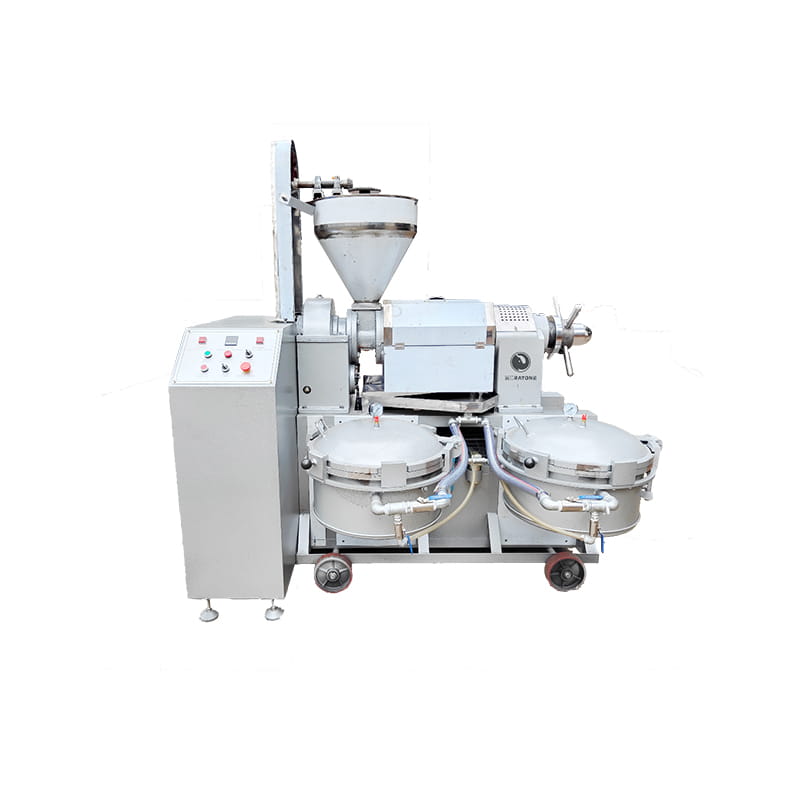

The flaxseed oil press machine consists of five key components: the electrical control system, the heating and pressing system, the adjustment system, the vacuum oil filter system, and the transmission system.

  The flaxseed oil press machine consists of five key components: the electrical control system, the heating and pressing system, the adjustment system, the vacuum oil filter system, and the transmission system.

  The primary motor delivers power that is then transmitted to the main shaft through the reducer. The screw, which is mounted on the main shaft, continually advances the oil between the threads as it rotates.

  The machine is equipped with both crushing and filtering functions, allowing crude oil to be filtered directly through the oil pipe. With automatic operation, it is more convenient to use.

  Additionally, the machine features a temperature control system that can shorten the pre-pressing time and reduce the necessary space for operation. The multifunctional machine can crush a variety of oil crops, including sunflower seeds, soybeans, peanuts, and sesame.

  The oil pan and cover plate are made of stainless steel, making it easier to clean, and it is particularly well-suited for small-scale factories.



Machine Parameter:

Item

RF95-A Multi-functional oil press

RF125-A Multi-functional oil press

RF128-A Multi-functional oil press

RF130-A Multi-functional oil press

Specification

Speed: 150-200 kg/h

Capacity: 3.5-5 T/ 24hrs

Power: 16.4 kw-4P

Size: 1900*1300*2050mm

Weight: 1450 kg

Speed: 210-300 kg/h

Capacity: 5-7 T/ 24hrs

Power: 20.4 kw-4P

Size: 2100*1300*1970mm

Weight: 1530 kg

Speed: 300-375 kg/h

Capacity: 7-9 T/ 24hrs

Power: 20.4 kw-4P

Size: 2100*1400*1770mm

Weight: 1700 kg

Speed: 450-500 kg/h

Capacity: 10-12 T/ 24hrs

Power: 23.9 kw-4P

Size: 2250*1450*2080mm

Weight: 1850 kg

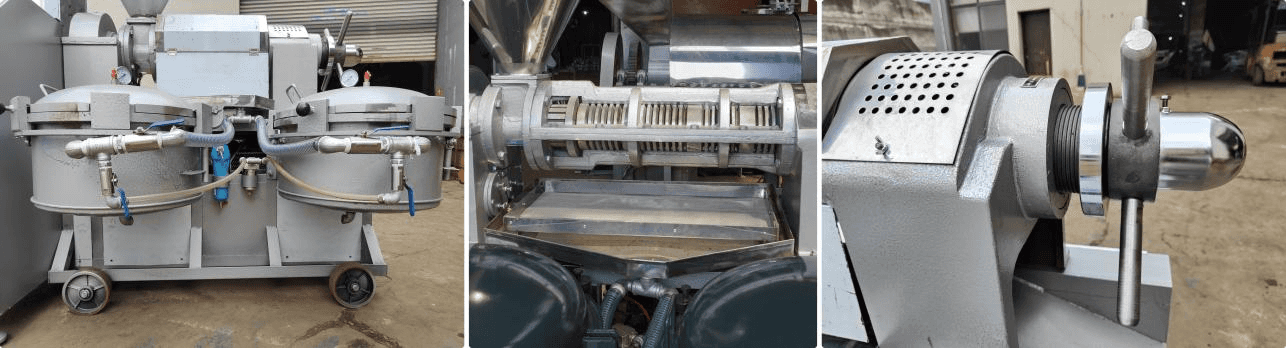

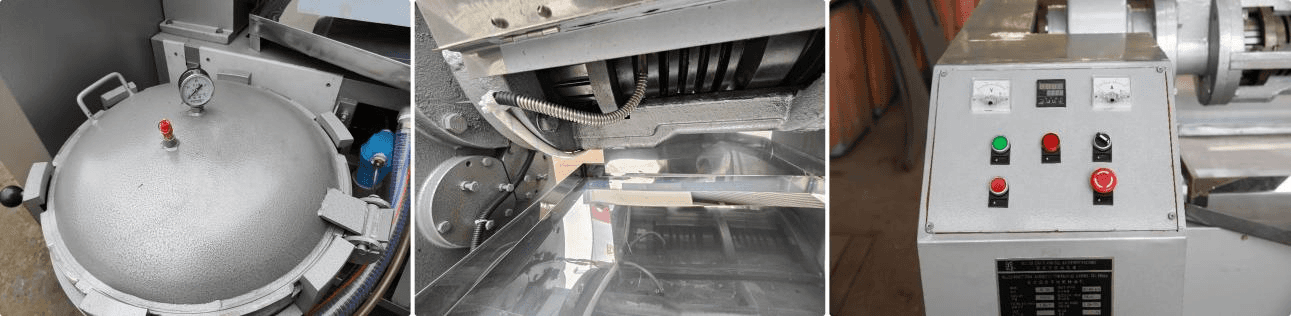

Details Picture:

  Make oil by physical squeeze, electric heating pipes on press cage and screw shaft, equipped pressure oil filter. Suitable for small and medium-sized oil factories pursuing high automation machines and small workshop production area.

1.High oil output rate--it can make 20kg-25kg peanut oil from every 50kg peanut.

2.Save energy—it can save 40% electricity compared with the similar machine in the market.

3.Save both labor and money—it just need 1-2 people to operate the oil expeller machine.

4.Wide using range—this oil expeller can press various kinds of oil crops, such as peanut, sesame, soybean, flax, rapeseed, oil sunflower, cottonseed.

5.High hardness and strength, good abrasion resistance and long using life.

6.Efficient oil producing, easy operating, high automatic.

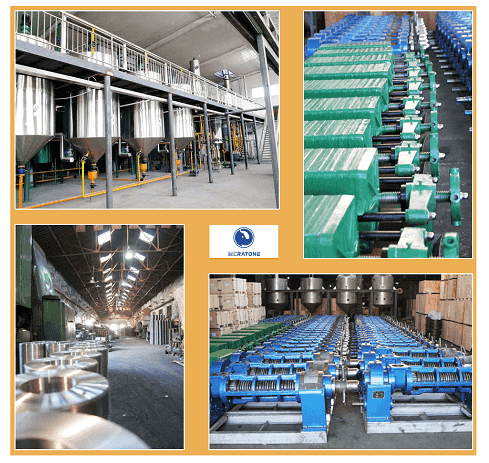

Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

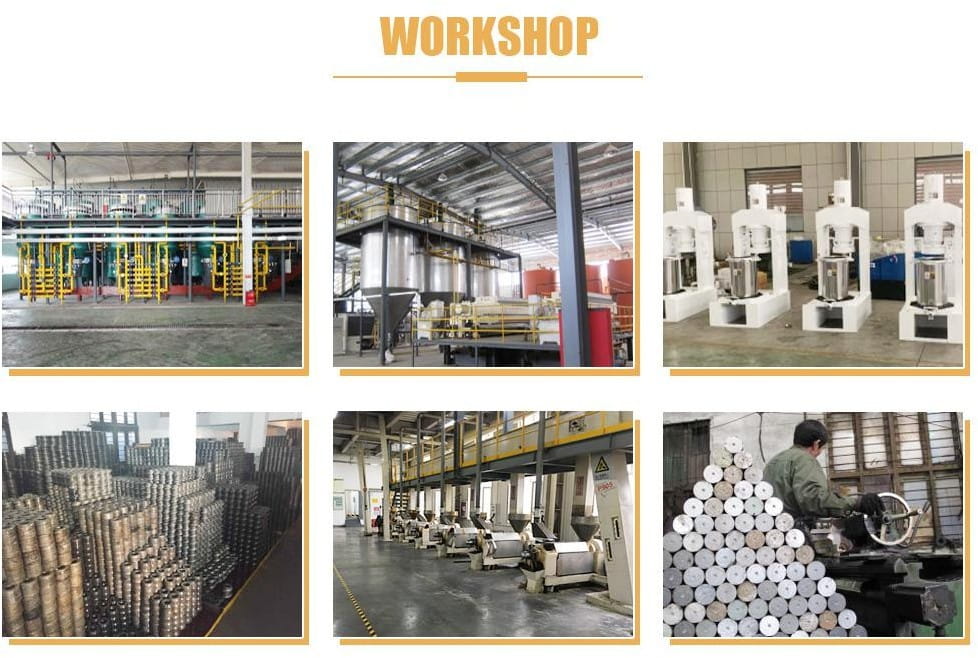

We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.

In the course of our company's decades of development, we have obtained multiple official certificates, such as :



  • ISO-9001 international quality system certification
  • CE certificate
  • China's AAA credit enterprises
  • Certification for honoring contracts and keeping promises
  • Certificate of Integrity management demonstration unit
  • Certificate of Quality Service Integrity Unit
  • Enterprise Credit Rating Certificate



Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
