Plate and frame filter product description

  The description of the product involves eliminating solid impurities from the oil to enhance the performance of the grease. It comprises a filter plate/frame, oil pump, connecting pipe, pressure gauge, and other elements. The filter plate and frame are lined with filter paper or cloth to act as the filtration medium. The pressing device applies pressure to hold the filter plate and frame in place, creating separate filter chambers where the filter paper is compressed between them.

  The plate/box filter press offers a substantial filtration area and high flow rate. It is suitable for liquids with low viscosity below 50% and a small quantity of residue. It is employed for enclosed filtration to achieve purification, sterilization, clarification, and other precise and semi-precise filtration requirements. Consequently, it finds extensive applications in the industries of oil, pharmaceuticals, chemicals, food, and other sectors.



Machine Parameter:

Item

Z26 Plate Frame Oil Filter

YLB307 Plate Frame Oil Filter

YLB307L Plate Frame Oil Filter

YLB470 Plate Frame Oil Filter







Specification

Filter Area: 1m2

Capacity: 85-100 kg/h

Plate Size: 260*260mm

Plate Quantity: 8 pcs

Power: 0.55 kw-4P

Size: 900*410*750mm

Weight: 180 kg

Filter Area: 3m2

Capacity: 120-180 kg/h

Plate Size: 355*355mm

Plate Quantity: 13 pcs

Power: 1.5 kw-4P

Size: 1270*570*640mm

Weight: 430 kg

Filter Area: 4m2

Capacity: 190-250 kg/h

Plate Size: 355*355mm

Plate Quantity: 18 pcs

Power: 1.5 kw-4P

Size: 1520*570*640mm

Weight: 550 kg

Filter Area: 7m2

Capacity: 450 kg/h

Plate Size: 470*470mm

Plate Quantity: 18 pcs

Power: 1.5 kw-4P

Size: 1650*700*780mm

Weight: 1040 kg

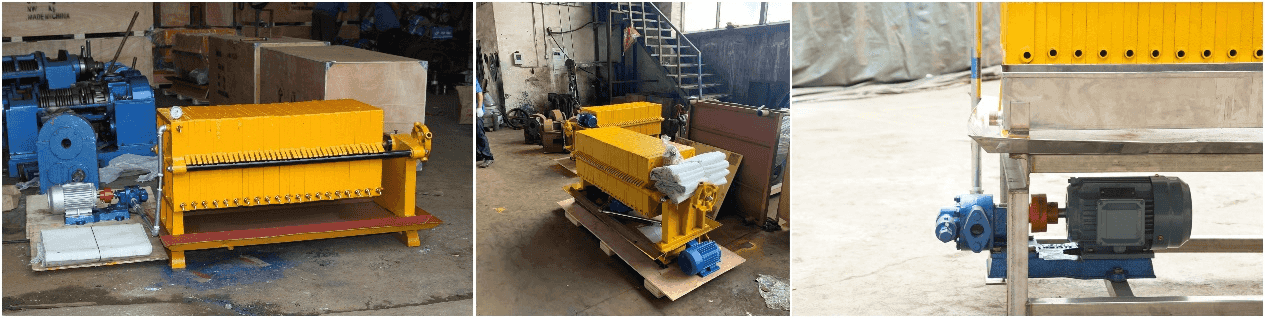

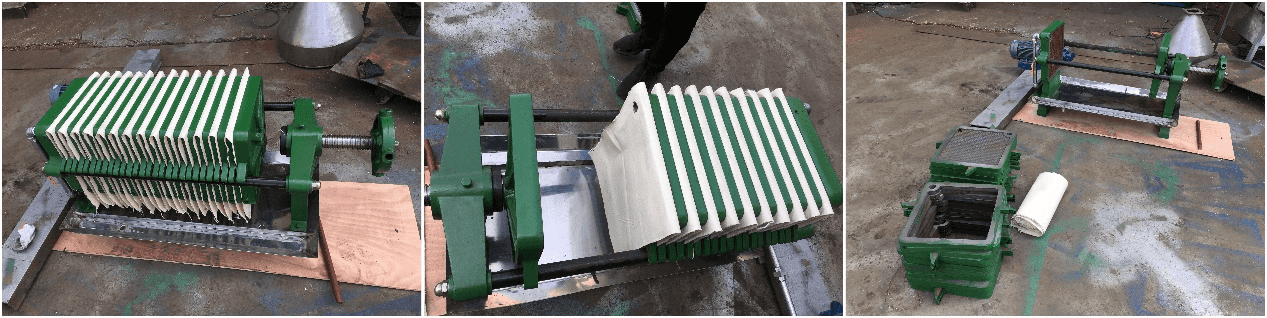

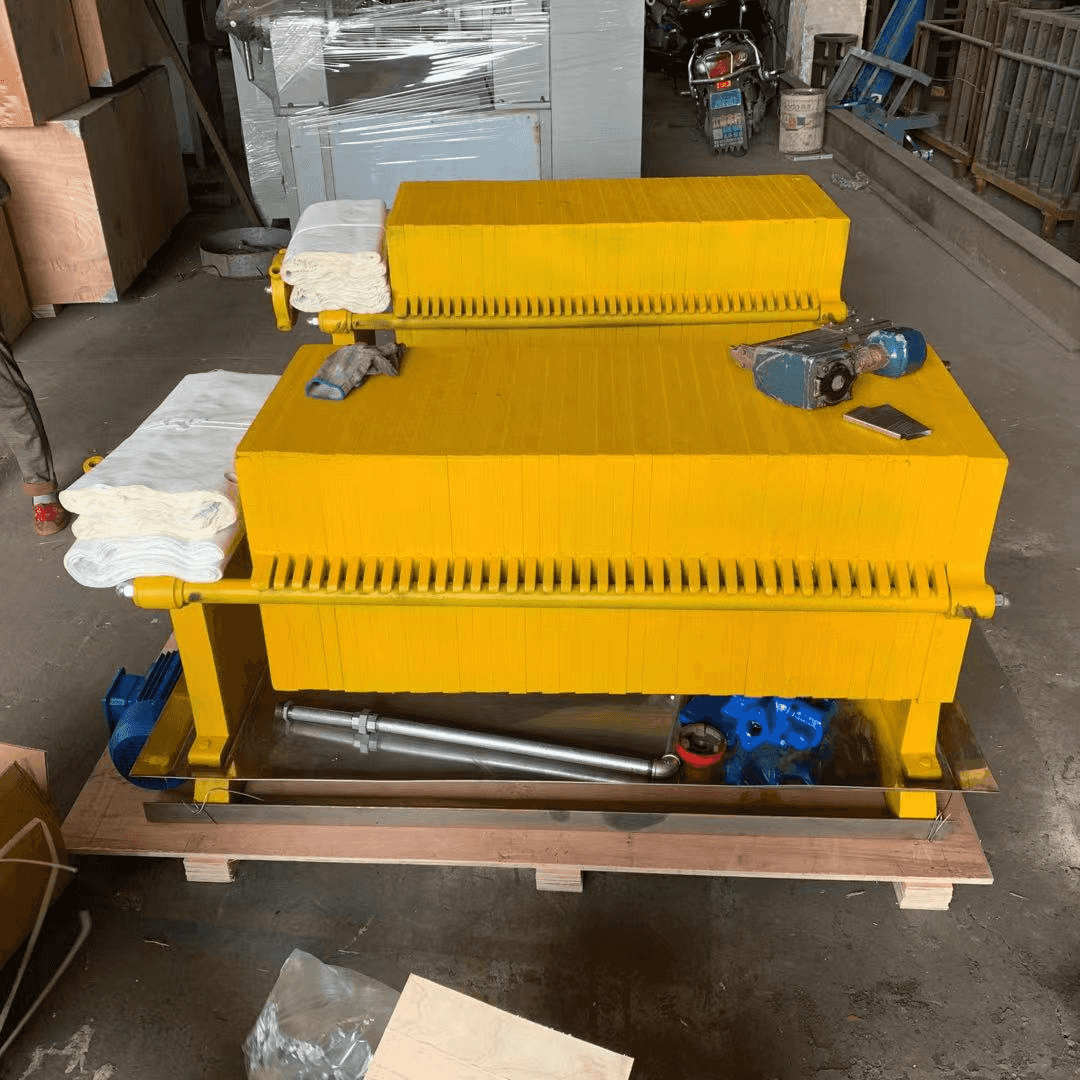

Details Picture:

The machine is used for refined oil and crude oil. There are advantages following:

  1. Mainly used for filtering series kinds of plant crude oil, such as peanut\ sesames\ rape-seeds\ sunflowers\ coconut oil, etc.
  2. Capacity customized from customer's request, suitable for different scales of oil refinery and oil factory.
  3. Equipped with gear pump which convey the oil to the filtration rooms, saving labor and has higher efficiency.
  4. The filtrating force is big, thus can achieve precise result.
  5. Matched with different capacity of oil press machine, such as ZX125\ZX105, etc.
  6. Light weight, convenient operation, matched with oil pump and motor.

Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.

In the course of our company's decades of development, we have obtained multiple official certificates, such as :



  • ISO-9001 international quality system certification
  • CE certificate
  • China's AAA credit enterprises
  • Certification for honoring contracts and keeping promises
  • Certificate of Integrity management demonstration unit
  • Certificate of Quality Service Integrity Unit
  • Enterprise Credit Rating Certificate



Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
