Single Screw Oil Press
Screw oil press is made of high carbon steel, high frequency quenching, high hardness, adapted to high temperature and high pressure continuous operation, improve the service life of the oil press, the use of time can be up to more than ten years.

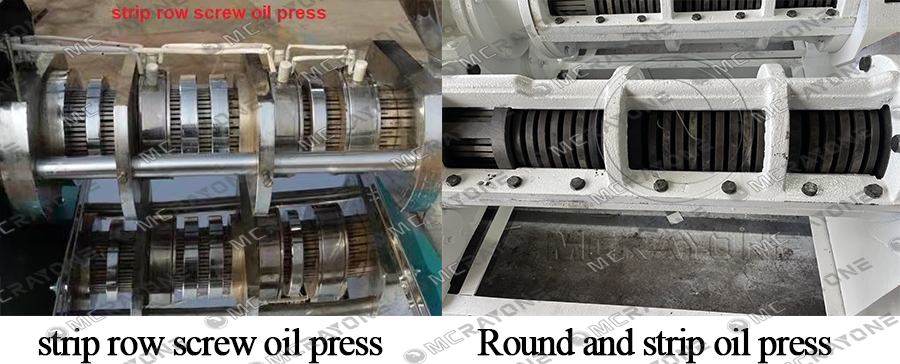

The screw oil press is a machine that separates oil from raw materials by purely physical screw extrusion. There are strip-type screw oil presses and round-type screw oil presses on the market. The strip-type screw oil press means that the oil outlet is composed of strips, and the round-type screw oil press means that the oil outlet is composed of strips and rounds. Our factory produces round-type screw oil presses. Compared with the strip-type screw oil press, the round-type screw oil press has the advantage that the oil press is composed of strips and rounds, with high pressure, high oil output, and thin cakes. It is wear-resistant, does not produce residue, the pressed material is relatively clean, the efficiency is high, and the process is simple and easy to operate. Oil crops with an oil content of more than 15% can be processed by our machines. After pressing, you will get crude oil and oil cakes, and the residual oil rate in the oil cakes is about 5-7%.

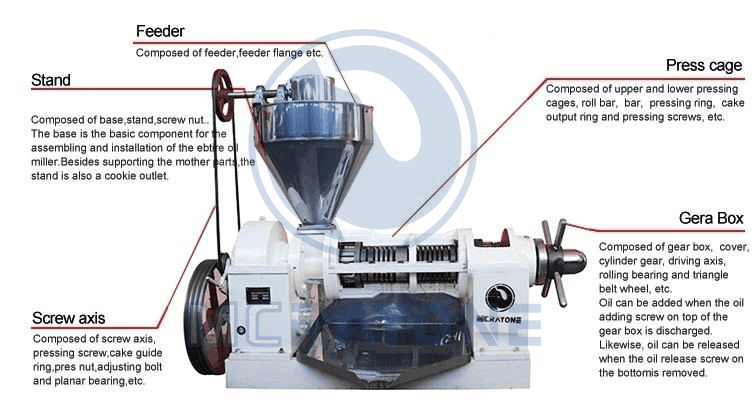

Screw oil press consists of five parts: hopper, gear box, press chamber, press screw and frame. The screw is the key of the whole single screw oil press, and the selection of its raw material will affect the quality and service life of the single screw oil press.
Screw oil press uses the motor or diesel as the engine. Before pressing, a small amount of oil plant seeds needs to be pre-treated such as peeled or cooked to get higher oil output. At the same time, turn on the heating switch to pre-heat the pressing cage. About twenty minutes later, the temperature can reach pressing requirement for oil seeds feeding both by labor and by conveyor are feasible, but conveyor can promise the continuous feeding. It is the screw shaft-driving force that squeezes oil from oil seeds. With the constant feeding and screw shaft rotating the space between the rings and the pressing screws is smaller and smaller and squeezes tightly. Edible oil flows to the oil receiving plate and cakes are discharged out.
MCRAYONE offers different screw oil presses to fit different oil production capacities. They are all certificated with ISO9001 and CE. MCRAYONE has been manufacturing edible oil production equipment more than 40 years, and has also done edible oil production projects in Nigeria, Congo, Cameroon, Angola, Zambia, Côte d'Ivoire, India, Bangladesh, Nepal, Tanzania., Indonesia and More than 30 countries. If you are going to buy an ideal oil press machine, there are always one model suitable for your request BEST.

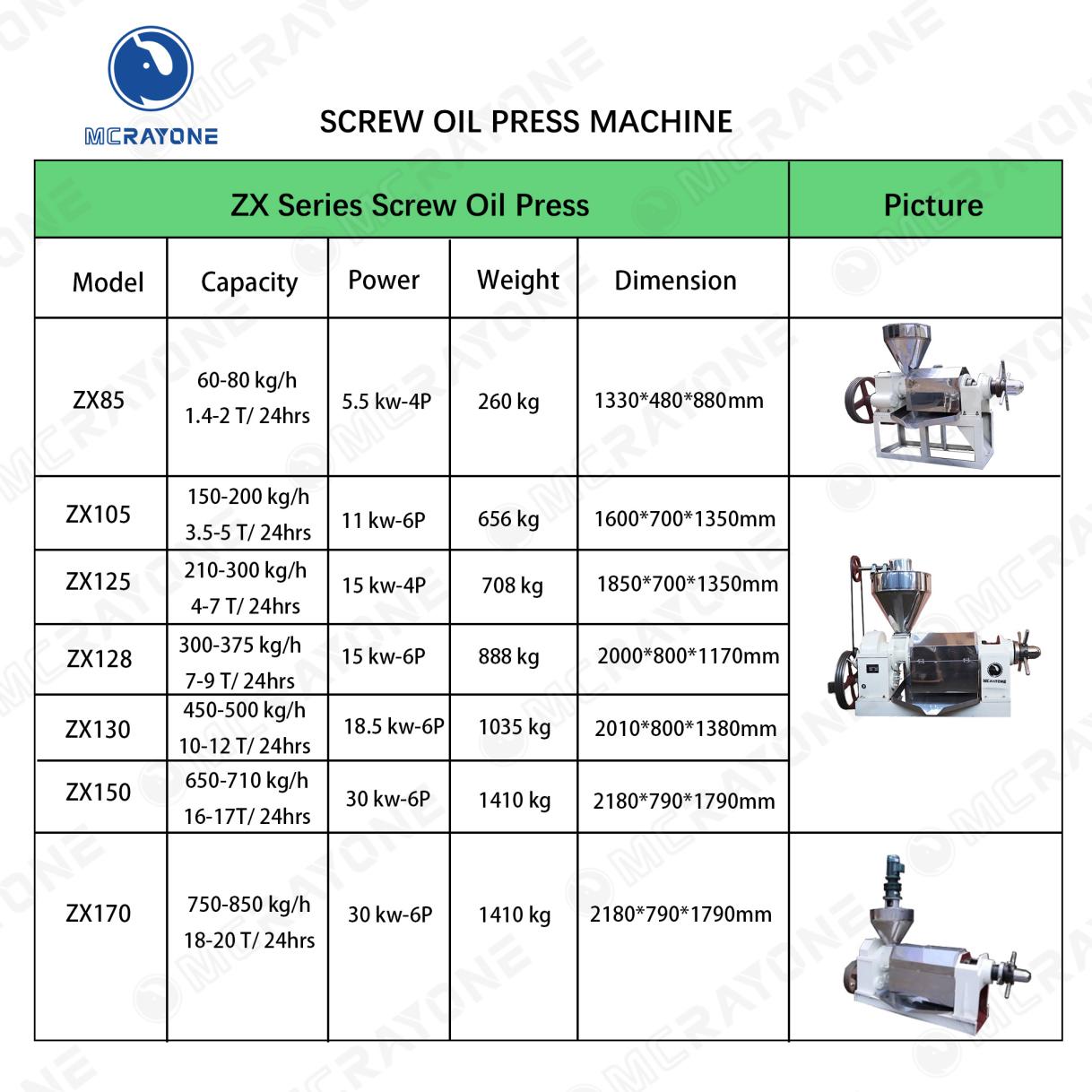

Screw Oil Press Technical Date
ZX screw oil press is the basic oil press launched by our factory.
According to the needs of buyers, we have designed various models to meet the needs of large, medium and small oil factories for different output. This machine is widely used in various oil crops, such as: peanuts, sunflower seeds, soybeans, sesame seeds, almonds, corn germ, copra, palm kernels and other oil crops.
Moreover, this machine has high output per unit, simple operation, low residual oil rate, and is a very cost-effective oil press.
1.High oil output rate.
2.Save energy—it can save 40% electronic .
3.It can save labor and save cost: only one or two people can meet the production.
4.Wide using range, Occupied workshop area is small.
5.Mechanical and electrical are integral.
6.High hardness and strength, good abrasion resistance and long using life.
7.Efficient oil producing, easy operating, high automatic.
8.Low investment, get more profit.
