Ruian Every Machinery Co., Ltd

Single Soybean Oil Press Machine

Single Screw Oil Press

Begin by feeding the thoroughly cleaned soybean seeds into the Screw Conveyor, which transports them to the Roasting machine for preheating.

Oil Production Line Equipment Example:

Soybean → Conveyor → Roasting → Conveyor → Squeeze → Filter

  Begin by feeding the thoroughly cleaned soybean seeds into the Screw Conveyor, which transports them to the Roasting machine for preheating.

  Once the preheating is complete, the seeds are automatically moved to the oil press for crushing. The resulting crude oil is then transferred to the Oil Filter Machine for purification. The oil pressing process can be divided into two types: hot pressing and cold pressing.

  The difference between the two production lines in whether Roasting is used. Cold pressing involves an additional step, which can be more cumbersome than hot pressing. Generally speaking, we recommend that customers employ the Roasting's hot-pressing technology to increase output and improve oil yield.



Machine Parameter:

Item

ZX85 Screw Oil Press

ZX105 Screw Oil Press

ZX125 Screw Oil Press

ZX128 Screw Oil Press

ZX130 Screw Oil Press

ZX170 Screw Oil Press

Specification

Speed: 60-80 kg/h

Capacity: 1.4-2 T/ 24hrs

Power: 5.5 kw-4P

Size: 1200*400*900mm

Weight: 260 kg

Speed: 150-200 kg/h

Capacity: 3.5-5 T/ 24hrs

Power: 11 kw-6P

Size: 1600*700*1350mm

Weight: 530 kg

Speed: 210-300 kg/h

Capacity: 4-7 T/ 24hrs

Power: 15 kw-4P

Size: 1850*700*1350mm

Weight: 580 kg

Speed: 300-375 kg/h

Capacity: 7-9 T/ 24hrs

Power: 15 kw-6P

Size: 2000*800*1170mm

Weight: 720 kg

Speed: 450-500 kg/h

Capacity: 10-12 T/ 24hrs

Power: 18.5 kw-6P

Size: 2010*800*1380mm

Weight: 820 kg

Speed: 750-850 kg/h

Capacity: 16-20 T/ 24hrs

Power: 30 kw-6P

Size: 2180*790*1790mm

Weight: 1060 kg

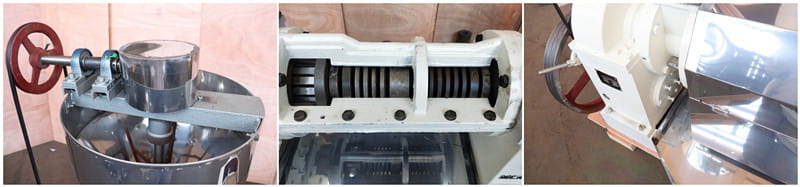

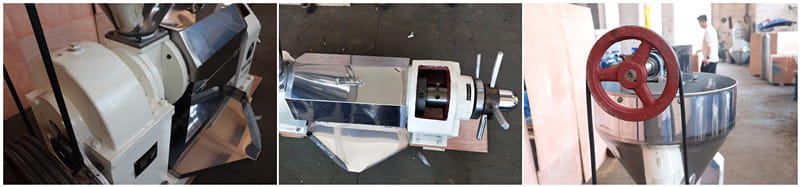

Details Picture:

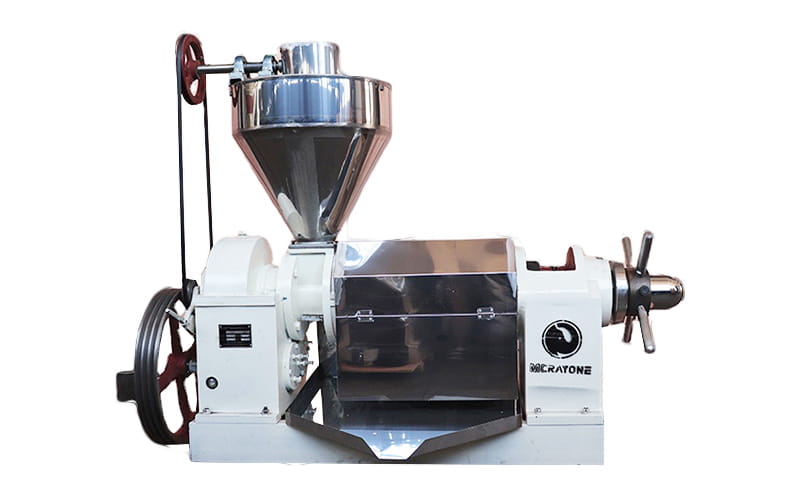

  ZX screw oil press is the basic oil press launched by our factory.

According to the needs of buyers, we have designed various models to meet the needs of large, medium and small oil factories for different output. This machine is widely used in various oil crops, such as: peanuts, sunflower seeds, soybeans, sesame seeds, almonds, corn germ, copra, palm kernels and other oil crops.

Moreover, this machine has high output per unit, simple operation, low residual oil rate, and is a very cost-effective oil press.

1.High oil output rate.

2.Save energy—it can save 40% electronic .

3.It can save labor and save cost: only one or two people can meet the production.

4.Wide using range, Occupied workshop area is small.

5.Mechanical and electrical are integral.

6.High hardness and strength, good abrasion resistance and long using life.

7.Efficient oil producing, easy operating, high automatic.

8.Low investment, get more profit.

Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.

In the course of our company's decades of development, we have obtained multiple official certificates, such as :



  • ISO-9001 international quality system certification
  • CE certificate
  • China's AAA credit enterprises
  • Certification for honoring contracts and keeping promises
  • Certificate of Integrity management demonstration unit
  • Certificate of Quality Service Integrity Unit
  • Enterprise Credit Rating Certificate



Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
