Soybean Oil Filter

  Soybean oil is typically processed by pressing and other methods to extract crude oil, which needs to be refined to obtain edible oil. Soybeans contain 15%-26% oil, and the oil yield ranges from 12%-18% depending on the quality of the soybeans.

  There are two main types of pressing methods: ordinary pressing and screw pressing. Ordinary pressing involves directly pressing soybeans to extract oil. This method is not widely used, especially in large-scale industrial production. Screw pressing, on the other hand, involves installing a screw shaft in the cylinder of a horizontal device. After the pretreated soybeans enter the screw press, oil gets squeezed out as the soybeans advance. This method is suitable for continuous production, but the protein content can change significantly due to friction and heat during the oil extraction process.

  Filtration is a crucial process in soybean oil pressing, as it removes solid impurities from the oil. When selecting a filter, the plate and frame filter is often preferred because of its relatively simple structure, easy operation, stable performance, and low maintenance requirements. It also has a flexible range of filter area selection and occupies less space, making it suitable for filtering various crude oils. Additionally, the plate and frame filter's steel raw materials offer hardness and long service life.

Machine Parameter:

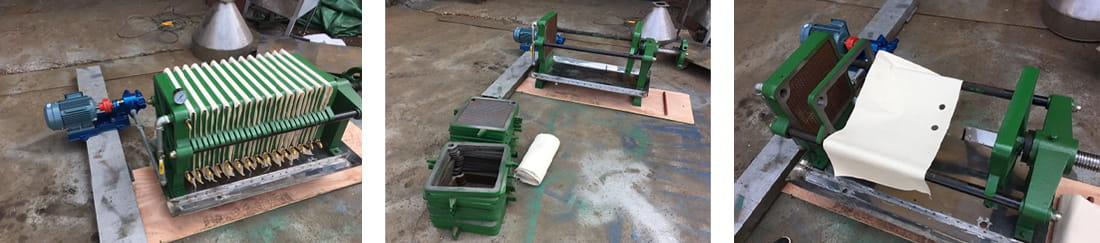

Details Picture:

The machine is used for refined oil and crude oil. There are advantages following:

1.Mainly used for filtering series kinds of plant crude oil, such as peanut\ sesames\ rape-seeds\ sunflowers\ coconut oil, etc.

2.Capacity customized from customer's request, suitable for different scales of oil refinery and oil factory.

3.Equipped with gear pump which convey the oil to the filtration rooms, saving labor and has higher efficiency.

4.The filtrating force is big, thus can achieve precise result.

5.Matched with different capacity of oil press machine, such as ZX125\ZX105, etc.

6.Light weight, convenient operation, matched with oil pump and motor.

  Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

  We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

  Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

  Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.

  In the course of our company's decades of development, we have obtained multiple official certificates, such as :

• ISO-9001 international quality system certification
• CE certificate
• China's AAA credit enterprises
• Certification for honoring contracts and keeping promises
• Certificate of Integrity management demonstration unit
• Certificate of Quality Service Integrity Unit
• Enterprise Credit Rating Certificate

  Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
