Auto-temperature Control Copra Oil Press

  Copra conveying: Copra material is in a block-shaped solid form, and it is not suitable for conveying with a lifting machine. Due to the small scraper conveyor imported, the feeding is not smooth. Therefore, a belt conveyor is used, and its inclination angle should not exceed 30 degrees, otherwise material dropping may occur.

  Grinding: Coconut meat is a hard block-like solid obtained after drying coconut meat. Therefore, it is necessary to address the issue of coconut meat grinding, and a coconut meat grinder must be installed.

  Steaming and stir-frying: Uniform heating is employed to enhance the oil yield of copra. However, the stirring action of the steaming and stir-frying equipment causes copra to easily spill out of the wok, drip oil along the main shaft, and cause environmental pollution and workshop waste. Additionally, the materials are prone to caking and transportation difficulties. To address this, it is necessary to reduce the comminution degree of the material, shorten the stirring time, and regularly clean the discharge port of the steaming and stir-frying equipment and the elevator to prevent material accumulation.

  Oil pressing: Because the properties of dried copra and ordinary oil are different, issues such as difficulty in feeding, cake formation, and lack of oil in the press cage's oil outlet may occur. Therefore, it's necessary to adjust the clearance between the tire and the ring. Strips of desiccated coconut material should have very small gaps between them while being extruded. After improving the steaming and frying conditions of the material, the feeding would become normal, and the oil would mainly come out in the second and third stages. It's worth noting that when starting the feeding, before the temperature in the press chamber increases, the flow rate of material entering the press chamber should not be excessive. Otherwise, a thin paste can form at the feeding point, resulting in low cake yield or even sintering.

  Oil clarification and filtration: Due to the presence of a large amount of fibrous material in the coconut kernel, the crude oil often contains a significant amount of impurities. Thus, a filter is necessary to separate out the solid impurities.

Machine Parameter:

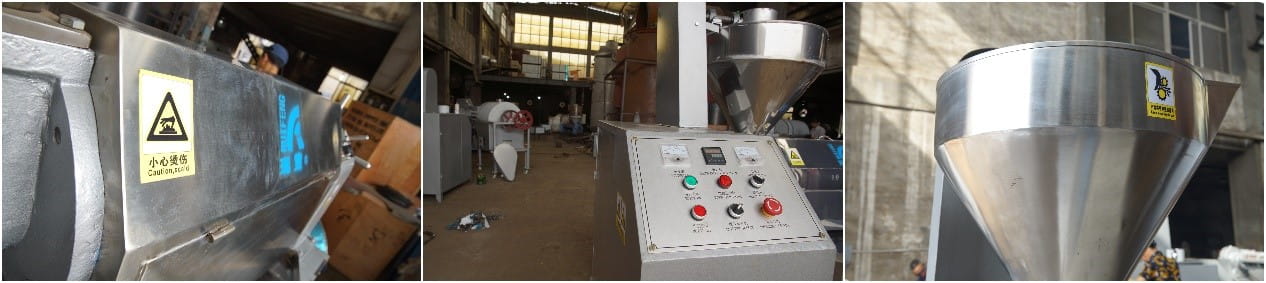

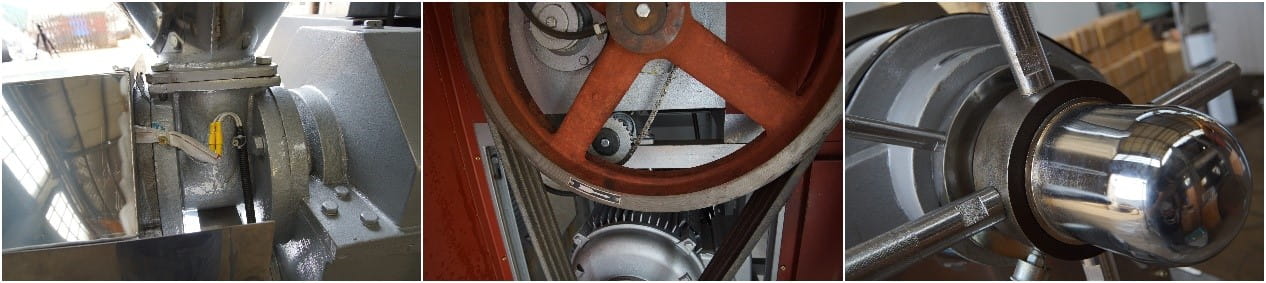

Details Picture:

  The machine of auto-temperature control presser is used for make oil by mechanical squeeze, there are advantages following:

1.The screw shaft and main pressing cage is internally installed electric heating pipes which can pre-heat them at the same time. This way can absolutely save the pre-heating time.

2.The press is equipped with electrical control cabinet, which can always monitor the temperature inside pressing cage thereby improving the reliability of heating and making the material a higher oil yield.

3.Not only make full use of heat to achieve environmental protection, green energy requirements, but also it can improve the quality of crude oil;

4.Installed electric motor at the bottom of oil press and with a protective cover, not only greatly reduce the area, but also improve the safety performance of the machine to use.

5.Oli tray and cover are made of stainless steel, more convenient to clean, so they become the first choices of small-medium enterprises and individual refineries preferred products.

Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.
