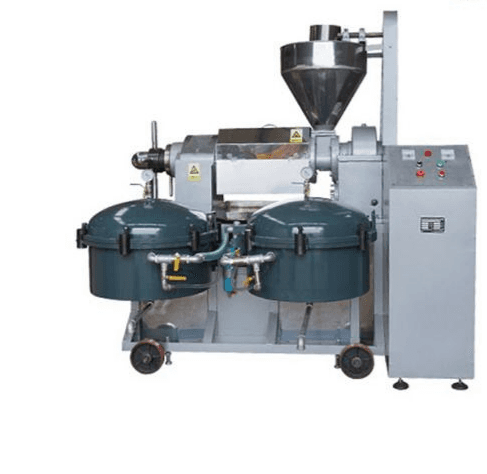

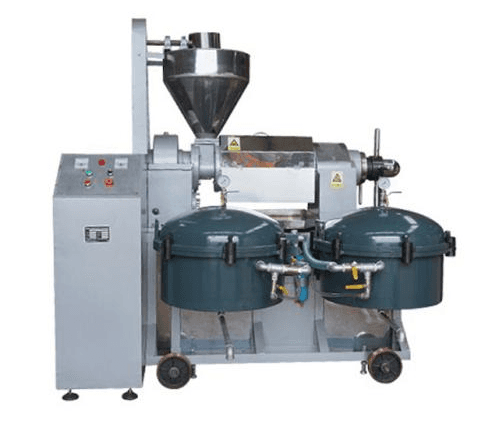

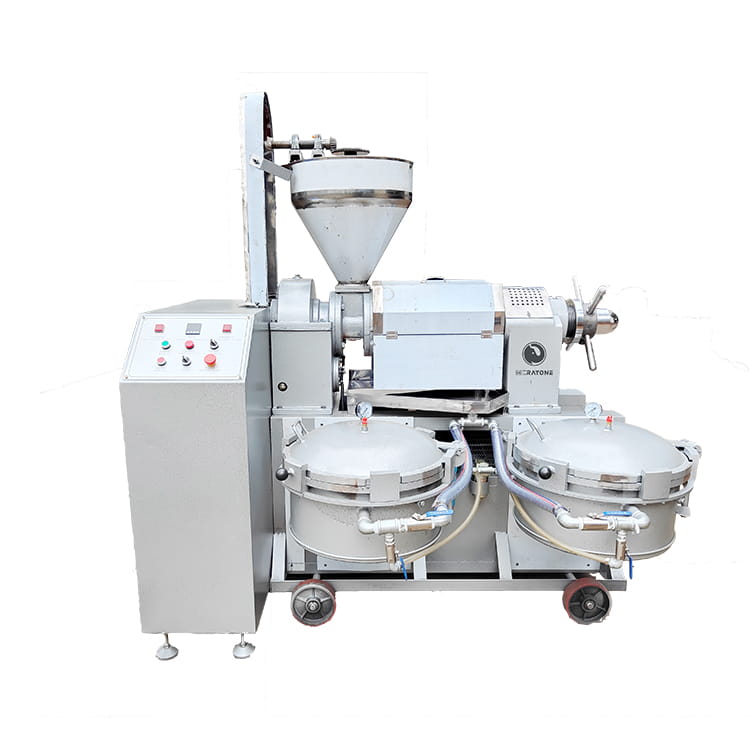

Oil Press Machine with Oil Filter

  Suitable for oils with high melting points that are easy to solidify. The wax on the filter cloth can be cleaned in a timely manner, making it the best choice for small oil mills. The biggest feature is that no matter how much oil is filtered, it can filter out oil or general liquids, and the filter cake is dry powder with low oil content. And the filtered crude oil does not need to be filtered again by a plate and frame filter, with less impurities and can be directly refined.

  And there is no oil storage, no oil leakage, fast speed, large processing capacity, energy saving, good oil quality, and durable filter cloth that is not easily damaged, resulting in a longer service life of the filter.

  Due to its built-in pressure filtration equipment, this machine has a high degree of automation. A single machine can produce high-quality filter oil, so they become the first choices of small-medium enterprises and individual refineries preferred products.

   Here is its working principle. Take filtering and pressing crude oil as an example.

1.Firstly, open the oil inlet valve, pour the crude oil into the tank, close the oil inlet valve, and close the vent valve.

2.Turn on the power switch to start the air compressor. When the generated high-pressure gas passes through the oil-water separator, the check valve enters the Storage tank. When there is a certain pressure inside the tank, high-pressure gas pushes the crude oil into the filter through the pipeline.

3.When the crude oil flows through the filter plate, a large amount of oil residue will be filtered out by the filter cloth, and the clean oil will flow out from the oil  nozzle until all the crude oil in the tank is filtered.

4.No matter how much production of oil is filtered, the filtered oil can be directly barreled or refined, without sediment, foam, and clear and bright.

5.In addition, when filtering, the fluidity of the oil is better at a certain temperature and the filtering speed is faster. Generally, the oil temperature should be between 30 ℃ -85 ℃ (different oils use different temperatures). When the filter residue is too thick, the filtering ability is reduced, and the filter residue must be removed or the filter cloth must be changed.

Machine Parameter:

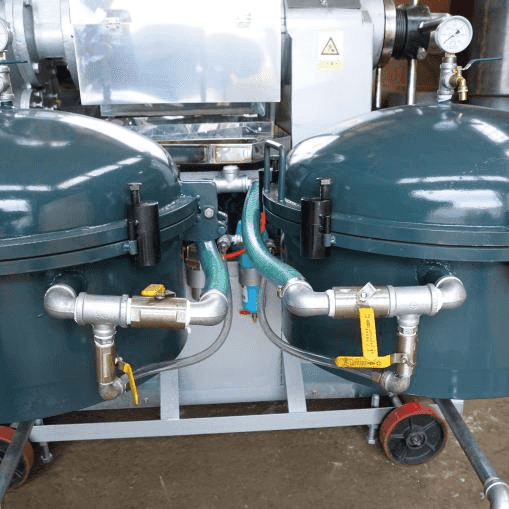

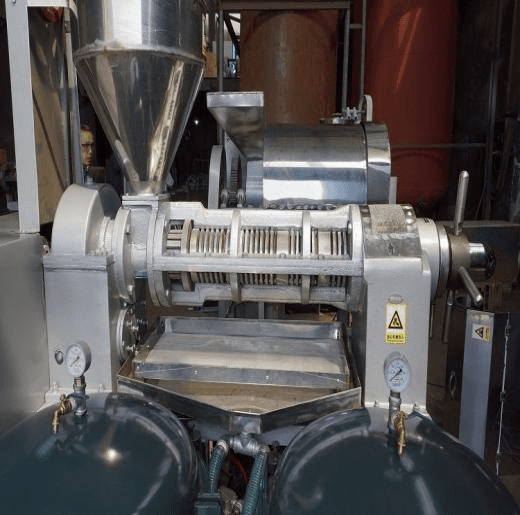

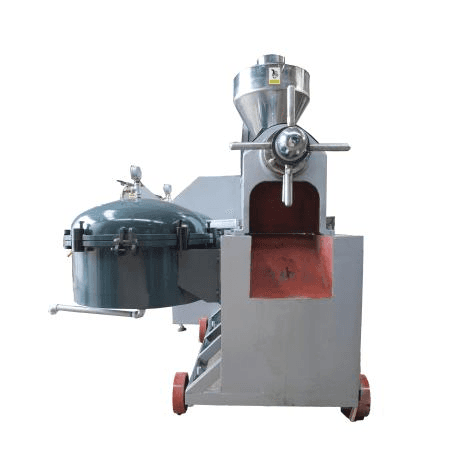

Details Picture:

It is suitable for pressing rapeseed, cottonseed, soybean, peanut kernel, flax seed, corn , Sunflower seed seed, palm kernel and other vegetable oils. The built-in pressure filtration equipment is its major advantage. Muti-functional oil press has both the continuation of the respective various advantages. There are advantages following:

     1.The main pressing cage is intemally installed electric heating pipes which can save the pre-heating time;

     2.Theelectrical control cabinet, which can monitor the temperature inside pressing cage, making the material a higher oil yield.

     3.The machine's heating devices, Not only green and environmentally friendly, but also improved crude oil quality.

     4.With pressure filter equipment.

     5. Installed electric motor at the bottom of oil press and with a protective cover, reduce the areand improve the safety performance of the machine.

     6.Oil tray and cover are made of stainless steel,more convenient to clean.

Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.
