High Quality Coconut Oil Production

Oil Production Line

The main components of coconut oil are lauric acid, myristic acid and palmitic acid. The hard part of coconut oil after fractionation is often used as raw material for cocoa butter and margarine.Low-carbon fatty acid triglyceride is one of the ingredients

  The main components of coconut oil are lauric acid, myristic acid and palmitic acid. The hard part of coconut oil after fractionation is often used as raw material for cocoa butter and margarine.Low-carbon fatty acid triglyceride is one of the ingredients of medical food and baby food formula, coconut oil is not only rich in C12 fatty acids, but also contains more than 15% of C6, C8, C10 fatty acids, which is the most abundant source of low-carbon fatty acids. In addition to the resulting oil, other edible by-products obtained from coconut oil are: coconut flour, protein, carbohydrates and vitamins.

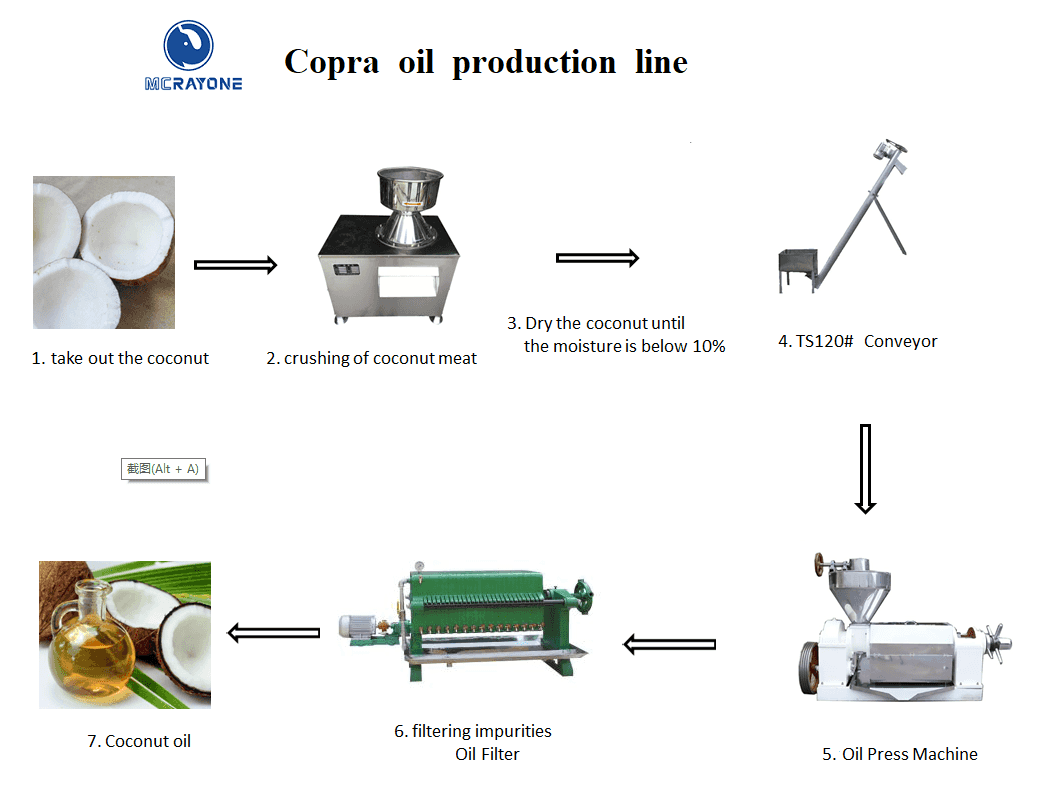

  Dry coconut processing: using copra as raw material, mechanical extraction of oil from screw oil press.

Production flow: Dried coconut with a water content of 10%-12%-- Crush it into peanuts size(2mm-6mm)--Pressing crude oil--Filter--Filtered Copra Oil.

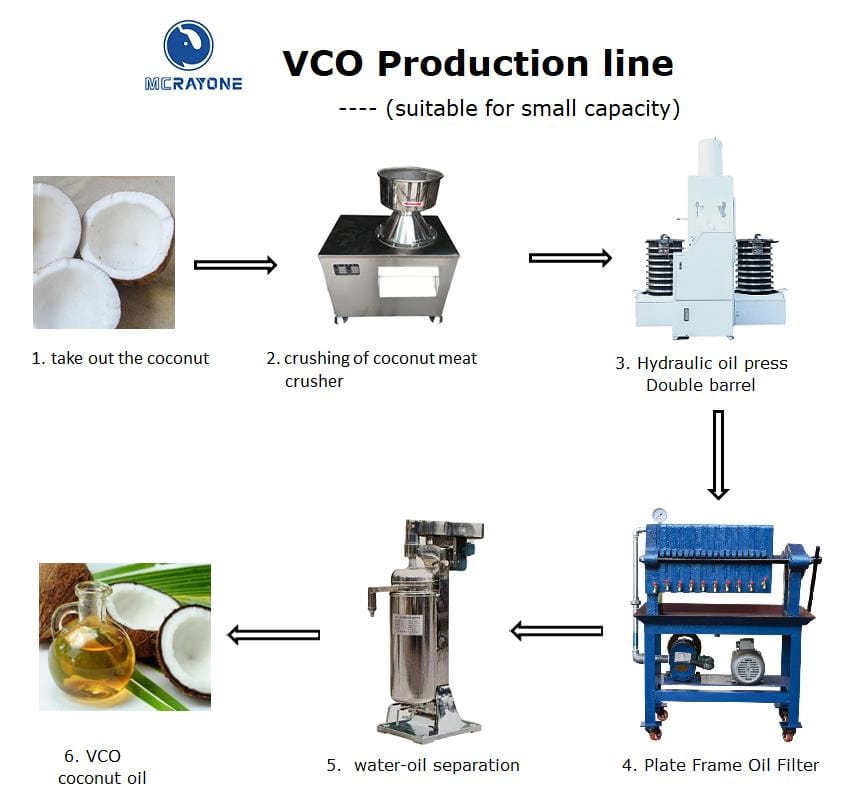

  Fresh coconut processing: using fresh coconut as raw material, mechanical extraction of oil from hydraulic oil press.

Production flow: Take out the coconut meat from whole coconut-- Crush it into peanuts size(2mm-6mm)--Pressing crude oil--Filter--Separated water-- Virgin Coconut Oil.



Related Machine Introduction

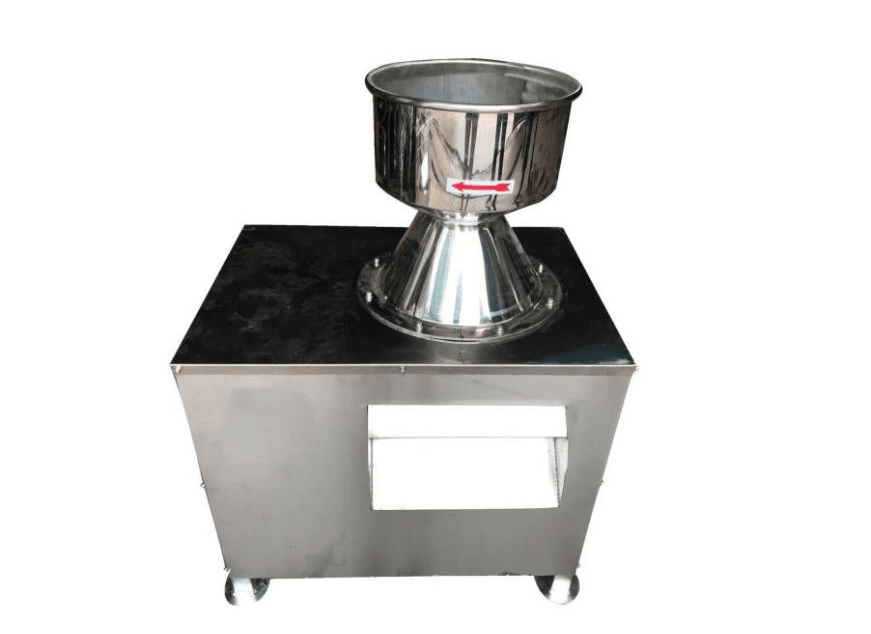

Grinder

Model

Outline Dimension(mm³)

Weight

Voltage

Power

Speed

Capacity

FSJ-30

750*700*1000mm³

145kg

220V/380V

3KW

3800r/min

300-500kg

FSJ-380

1000*800*1200mm³

230Kg

220V/380V

7.5KW

3800r/min

1t

FSJ-480

1200*800*1400mm³

400kg

220V/380V

11KW

3800r/min

3t



Uses:This machine is designed by our company according to the needs of the market, and crushes and crushes coconut meat, melons, ginger, roots and vegetables.

Feature :It has the advantages of reasonable and compact structure, beautiful appearance, low energy consumption, high efficiency, simple operation, long service life and so on.

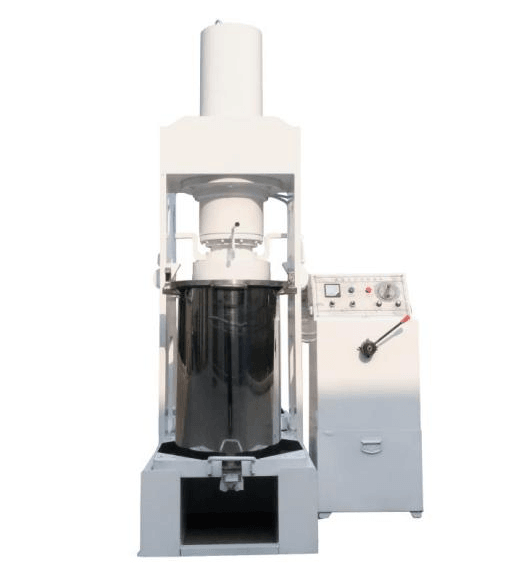

Hydraulic Press

Model

Bucket type

Barrel capacity

Equipped with power

Working thrust

Weight

Dimensions

6YY-250D-SP

Single barrel

75KG

3KW

200Ton

1350KG

1400*1300*2300mm

6YY-250D-DP

Double barrel

1550KG

2050*1300*2300mm

6YY-250F-SP

Single barrel

95KG

3KW

250Ton

1600kg

1400*1300*2550mm

6YY-250F-DP

Double barrel

1800kg

2050*1300*2550mm

6YY-280D-SP

Single barrel

100KG

3KW

200Ton

2450KG

1400*1300*2550mm

6YY-280D-DP

Double barrel

2750KG

2050*1300*2550mm

Uses:The machine is used for make oil by mechanical squeeze.

Feature :

1.Large squeezing force and low noise.

2.Fast efficiency.

3.Simple operation and convenient maintenance.

4.Wide using range, Occupied workshop area is small.

5.High hardness and strength, good abrasion resistance and long using life.

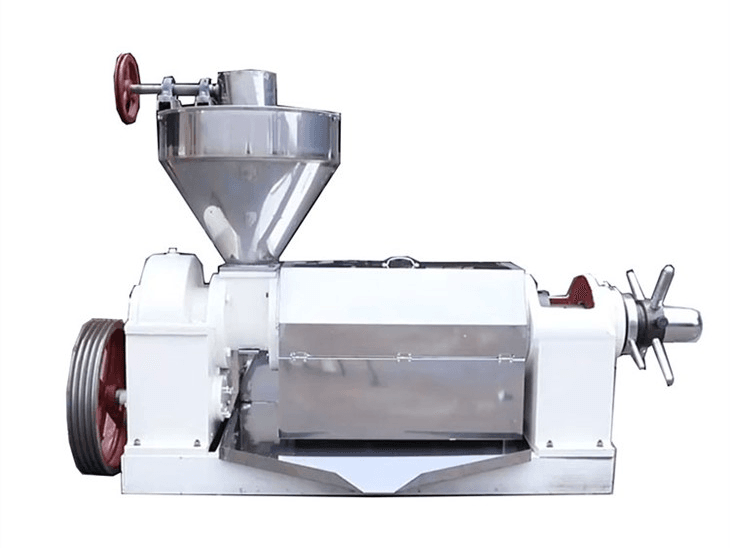

Screw Oil Press Machine

Model

ZX170 Oil press machine

ZX130 Oil press machine

ZX128 Oil press machine

ZX125 Oil press machine

ZX105 Oil press machine

ZX85 Oil press machine

Capacity(kg/h)

750-850

450-500

300-375

210-300

150-200

60-80

Dimension(mm³)

2180*790*1790mm³

2010*800*1380mm³

2000*800*1170mm³

1850*700*1350mm³

1600*700*1350mm³

1200*400*900mm³

Weight(kg)

1060

820

720

580

530

260

Power

30kw-6P

18.5kw-6P

15kw-6P

15kw-4P

11kw-6P

5.5kw-4P



Uses:The machine is used for make oil by mechanical squeeze.

Feature :

1.High oil output rate.

2.Save energy—it can save 40% electronic .

3.It can save labor and save cost: only one or two people can meet the production.

4.Wide using range, Occupied workshop area is small.

5.Mechanical and electrical are integral.

6.High hardness and strength, good abrasion resistance and long using life.

7.Efficient oil producing, easy operating, high automatic.

8.Low investment, get more profit.



1.The production line equipment configuration plan is designed and customized according to the customer's production quality requirements and the specific conditions of the workshop.

2.The equipment layout of the production line can be designed according to the layout of the customer's actual factory, and the equipment layout diagram can be provided.

Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.

In the course of our company's decades of development, we have obtained multiple official certificates, such as :

  • ISO-9001 international quality system certification
  • CE certificate
  • China's AAA credit enterprises
  • Certification for honoring contracts and keeping promises
  • Certificate of Integrity management demonstration unit
  • Certificate of Quality Service Integrity Unit
  • Enterprise Credit Rating Certificate



Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
