Castor is a plant seed smaller than an almond and produced in Africa. It is an important industrial oil with high oil content and low water content. The oil extracted is called "castor oil". Castor oil is a light yellow vegetable oil extracted from castor seeds. Castor oil is mainly used in preservatives, medicines, lubricants, etc. Currently, India is the largest producer of castor seeds, accounting for more than 80% of global production, followed by China and Brazil.
When the screw pressing method is used to produce castor oil, the operating temperature is directly related to the oil quality and producing effect in pressing process. In pressing, castor oil is aggregated in the form of liquid and the isolated from castors under two aspects of internal and external factors. Main contents of castor beans, feeding morphology and the operating temperature are directly determined the pressing effect. Shafting speed of screw press and the diameter of cake mouth restrict oil delivery rate and the effect of oil.
Castor oil processing process:
Cleaning→Shelling→Crushing→Roaster→Screw oil press→Filtering→Crude oil→Refining→Finished oil
Machine Parameter:
|
Model |
Capacity(kg/h) |
Dimension(mm³) |
Weight(kg) |
Power |
|
ZX170 Oil press machine |
750-850 |
2180*790*1790mm |
1060 |
30kw-6P |
|
ZX130 Oil press machine |
450-500 |
2010*800*1380mm |
820 |
18.5kw-6P |
|
ZX128 Oil press machine |
300-375 |
2000*800*1170mm |
720 |
15kw-6P |
|
ZX125 Oil press machine |
210-300 |
1850*700*1350mm |
580 |
15kw-4P |
|
ZX105 Oil press machine |
150-200 |
1600*700*1350mm |
530 |
11kw-6P |
|
ZX85 Oil press machine |
60-80 |
1200*400*900mm |
260 |
5.5kw-4P |

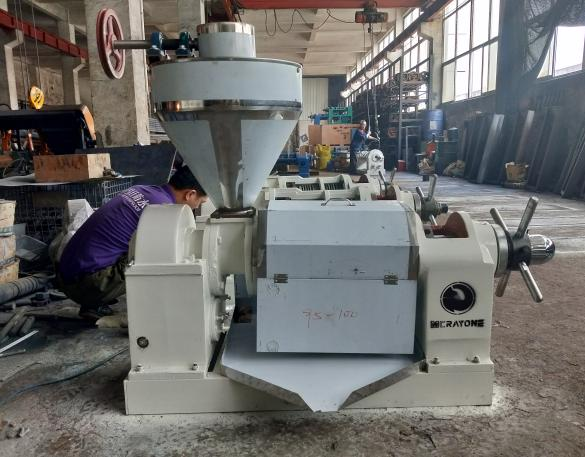

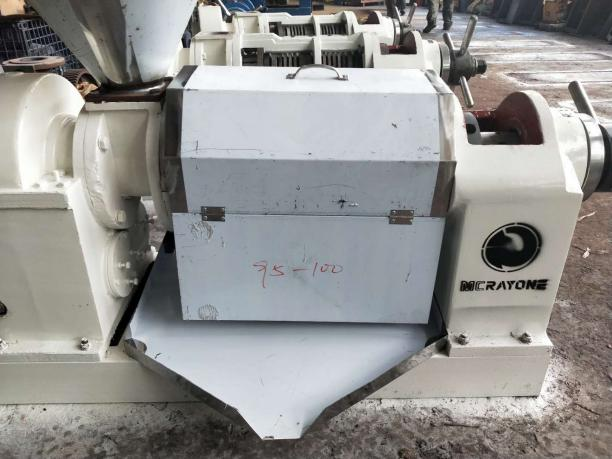

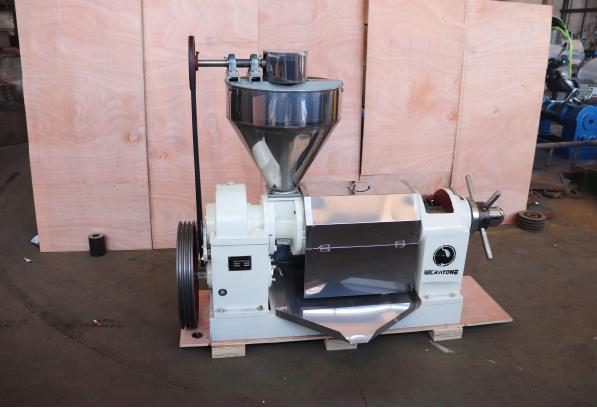

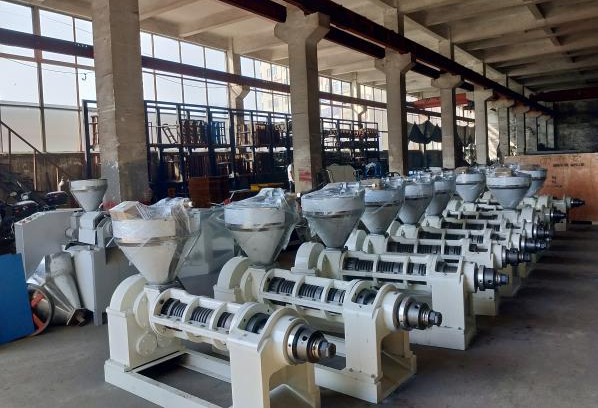

Details Picture:
Feature :
1.High oil output rate.
2.Save energy—it can save 40% electronic .
3.It can save labor and save cost: only one or two people can meet the production.
4.Wide using range, Occupied workshop area is small.
5.Mechanical and electrical are integral.
6.High hardness and strength, good abrasion resistance and long using life.
7.Efficient oil producing, easy operating, high automatic.
8.Low investment, get more profit.
Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.
We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.
Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.
Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.
In the course of our company's decades of development, we have obtained multiple official certificates, such as :
Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
