Flaxseed is the seed of the annual or perennial herbaceous plant flax, which can be pressed for oil. It is one of the top ten oil crops in the world, and its output ranks seventh. Flax is divided into oil flax, oil and fiber flax and fiber flax. Flax for oil has been cultivated in China for more than 600 years. It is mainly produced in the central and western parts of Inner Mongolia, northern Shanxi, Huining, Gansu and other regions. The flax oil here is also called flax oil locally, mainly because it was invented by Zhang Qian of the Han Dynasty in ancient times. introduced into our country. Flax is mainly distributed in temperate zones, and the oil content of flax seeds is generally 40 to 60%. What is significantly different from other edible oils is that the main fatty acid in flax oil is linolenic acid, with a content of about 50%. The temperature of the area where flax grows has a greater impact on the fatty acid composition of flaxseed. Flax oil in cold areas generally has a higher degree of unsaturation, while flax oil produced in warm areas has a lower degree of unsaturation. Flaxseed oil is rich in alpha-linolenic acid and is a great way to supplement linolenic acid.
The oil obtained by pressing flaxseed at room temperature is a yellow liquid with a specific smell. The texture gradually becomes thicker and the color gradually becomes darker in the air. Flax oil contains a lot of linolenic acid and has an unpleasant smell. It produces an "aftertaste" soon after refining. Therefore, flax oil is mainly used in industry, but it is also used as edible oil in some areas of Eastern Europe. Hydrogenation can reduce or eliminate the unpleasant smell of linseed oil. Linseed oil is easily oxidized, difficult to preserve, and requires relatively high storage conditions.
Hot pressed flaxseed oil process
Flaxseed → Cleaning → (Shelling) → Crushing → Frying → Pressing → Crude oil → Filtration → Refining → Crude linseed oil

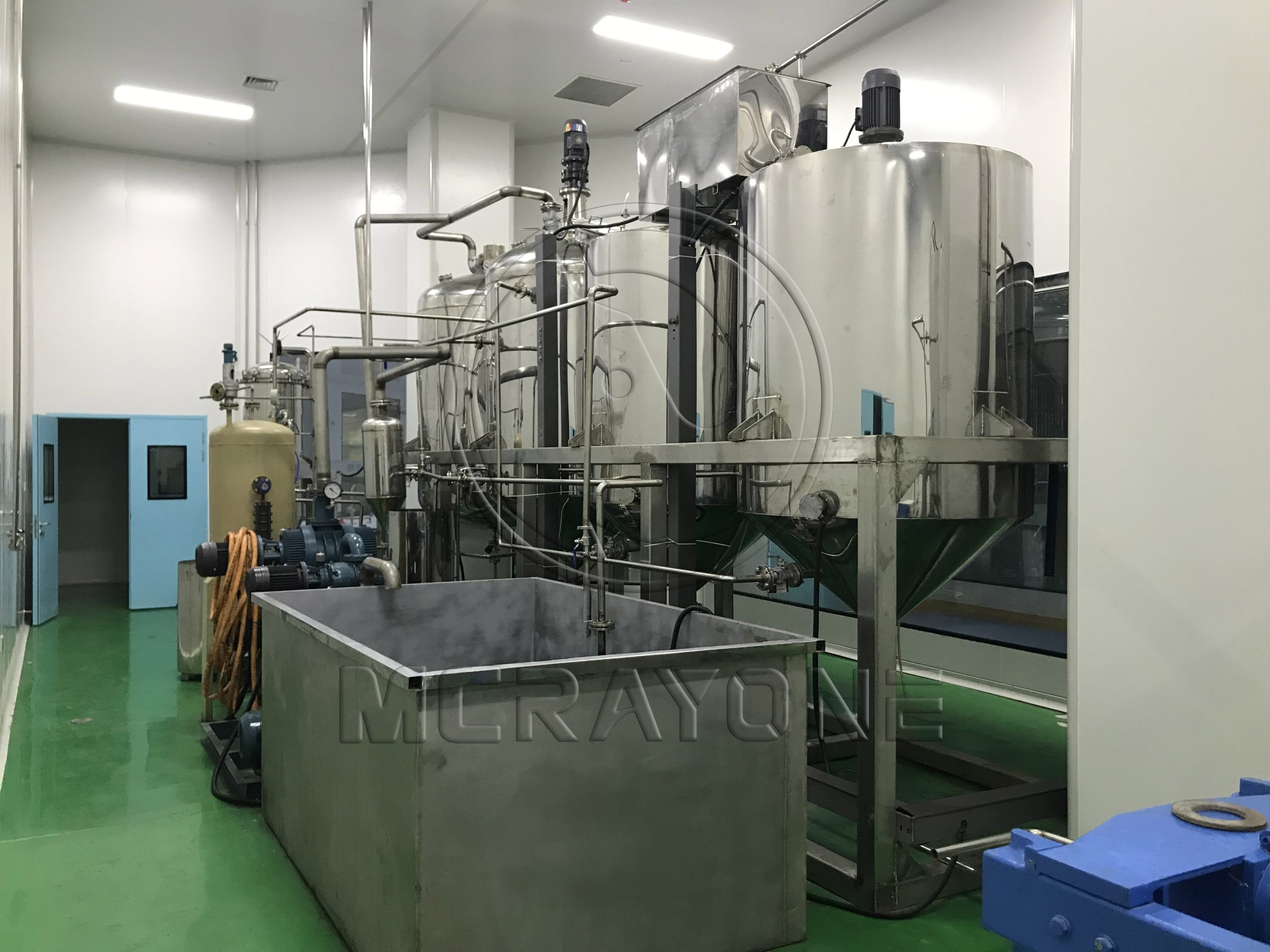

Refining process
Flaxseed crude oil → Degumming → Deacidification → Decolorization → Deodorization → Microfiltration → Flaxseed refined oil
1.Hydration degumming
The colloidal impurities in crude oil are mainly phosphorus. The presence of colloids such as phospholipids not only reduces the quality of oil, but also promotes transitional emulsification between oil and alkali in the alkali refining deacidification process, increasing the difficulty of separating saponins and aggravating the loss of neutral oil. Therefore it should be removed first.
2.Deacidification
Oil deacidification mainly removes free fatty acids in crude oil, as well as a small amount of colloids, pigments and trace metal substances in the oil. Deacidification operation is one of the important factors that directly affects the oil yield and quality of oil refining. The most widely used method in industrial production is the alkali refining deacidification method.
3.Decolorization
The color of the oil and some other impurities must be decolorized to meet product quality standards. At the same time, it provides more favorable conditions for deodorization and refining. Decolorization must meet the final color requirements of the product; remove relevant pigments and quantitative metals; further remove trace amounts of saponins, phospholipids and other colloidal impurities and certain odor substances remaining in the oil; remove polycyclic aromatic hydrocarbons and residual pesticides; reduce oil quality Oxidation value.
4.Deodorization
The purpose of oil deodorization is to remove odor-causing substances and other easily volatile substances in the oil, improve the odor and color of the oil, and improve the stability of the oil. The unique smell of oil, the odor produced during decolorization, the clam odor caused by the oxidation of oil, etc. In the deodorization stage, these undesirable odors are required to be directly sprayed into steam at high vacuum and distilled to remove them.
|
No. |
Equipment |
Application |
QTY (Set) |
Specification |
Picture |
|
1 |
Cleaning and Screening |
This machine is used to clean and screen seeds |
1 |
Processing capacity: 2t/h Voltage: 380v 50hz Power: 0.37kw*2 vibration motors Sieve plate: 2m long, 1m wide Size: 2600*1500*1400mm Weight: 400kg |
|
|
2 |
Screw Conveyor |
Conveyor is used to constantly convey the material to roaster or oil press machine directly. |
1 |
Capacity：2.1T/H Power： 1.5kw Material：Carbon steel Size: 2.56*0.35*0.67m Weight:150kg |
|
|
3 |

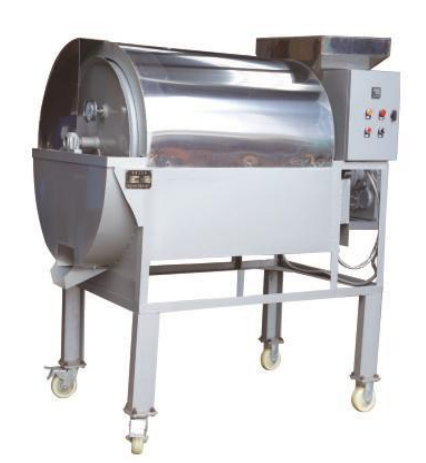

Roaster |
The roaster heats the material to a certain extent to destroy the oil film on the surface, which is convenient for pressing and improving the oil yield. |
1 |
Capacity:100-150kg/hr Motor power: 22kw Size:1450*820*1780mm Weight: 310kg |
|
|
4 |
Screw oil press |
The machine is used for making oil by mechanical squeeze. |
1 |
Speed: 150-200 kg/h Capacity:3.5-5.5T/24hrs Power: 11kw-6P kw Size: 1600*700*1350mm Weight: 530 kg |
|
|
5 |

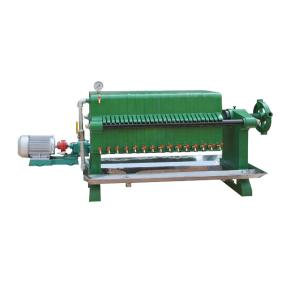

Plate frame oil filter |
The machine is used for removing the solid impurities in crude crude oil, such as oil residue and material residue. |
1 |
Capacity: 190-250 kg/h Plate Quantity: 18 pcs Power: 1.5 kw-4P Size: 1520*570*640mm Weight: 550 kg |
 |
Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.
We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.
Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.
Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.
In the course of our company's decades of development, we have obtained multiple official certificates, such as :
Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
