In the field of oil processing, a scientific and reasonable production line is the key to ensuring oil quality and production efficiency. The soybean oil pressing production line introduced to you today, with the precise cooperation of the ZX105 screw oil press and the Z26 plate and frame filter, realizes the efficient transformation from soybeans to pure soybean oil.

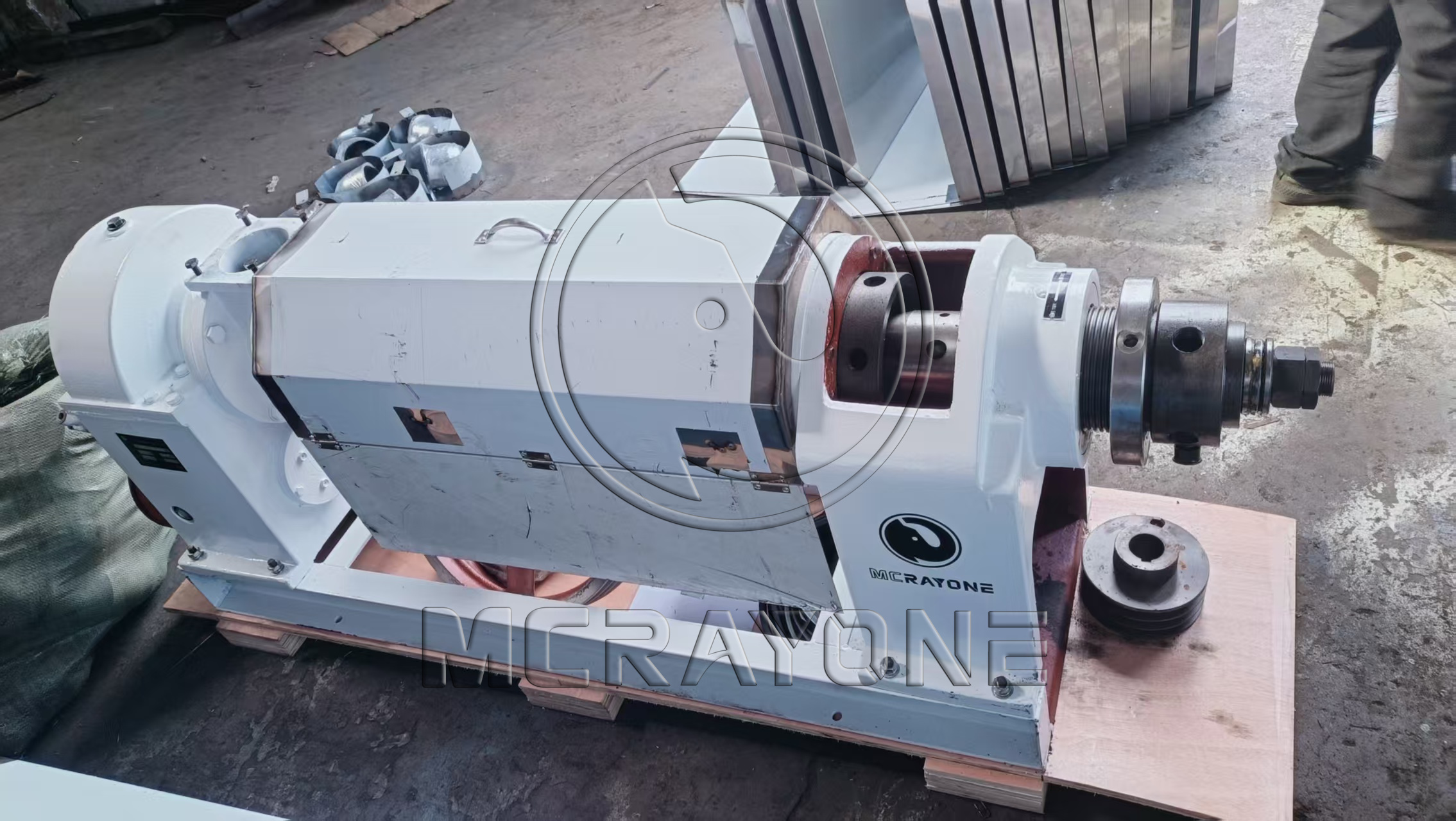

ZX105 screw oil press: the core "engine" of soybean oil pressing
The ZX105 screw oil press is the core equipment of this production line. It can press 150-200 kg of soybeans per hour and undertakes the key task of extracting crude oil from soybeans. During production, the pre-treated soybeans are fed into the feed hopper of the screw oil press. As the screw shaft in the pressing chamber rotates, the soybeans are squeezed in the gradually shrinking pressing chamber space. The spiral structure of the screw shaft continuously pushes the soybeans and applies extrusion force at the same time. This pressure causes the soybean cells to rupture, and the oil is separated and flows out along the oil outlet gap of the pressing chamber to obtain crude oil. The squeezed soybean meal is discharged from the other end of the oil press to achieve oil and meal separation.
The advantages of the zx105 screw oil press are significant. Its extrusion force is uniform and adjustable, which can adapt to soybean raw materials with different moisture and oil content to ensure a stable oil yield. At the same time, the mechanical structure is simple and durable, easy to maintain, and provides reliable guarantee for continuous production, making the soybean oil extraction process efficient and stable.

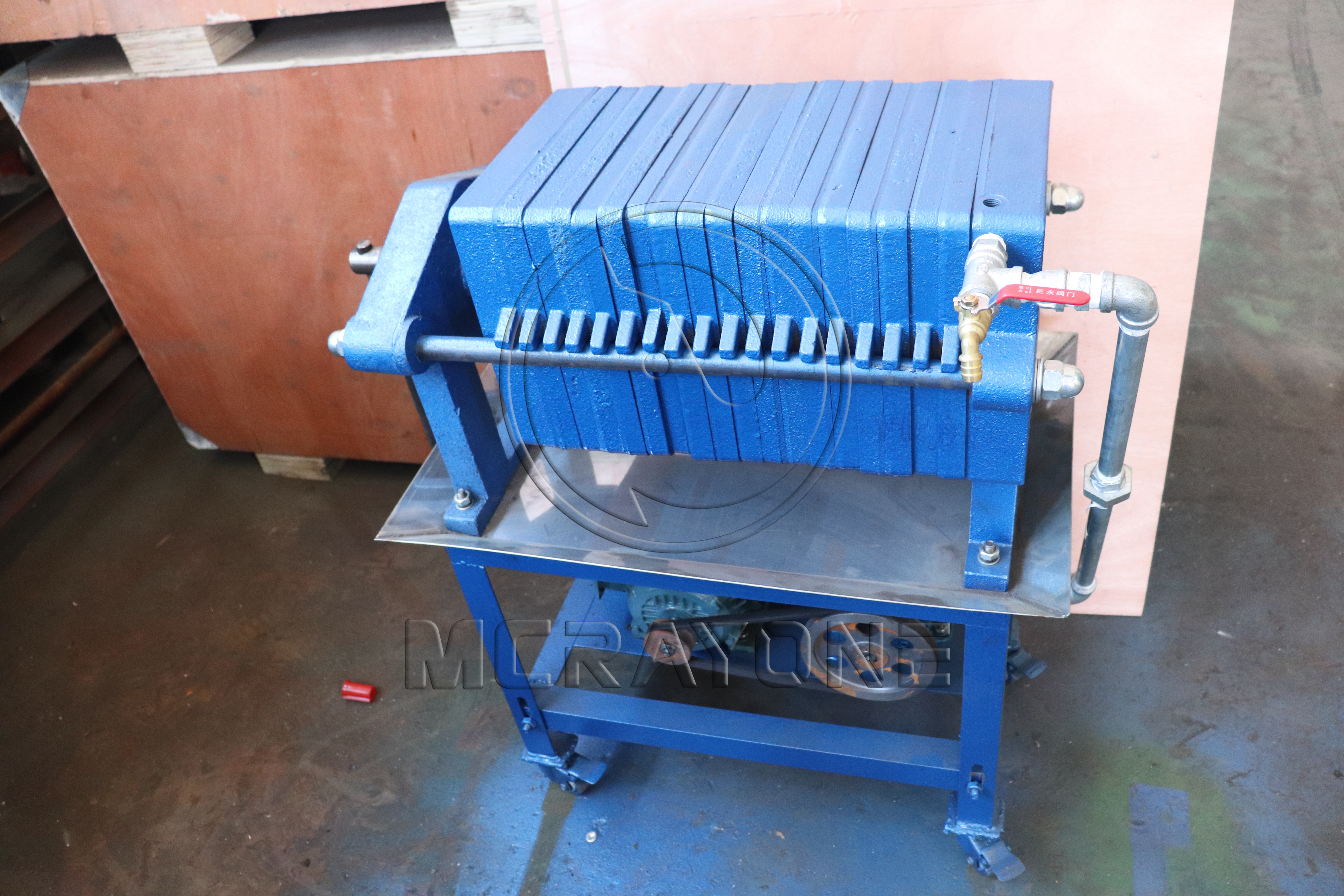

z26 plate and frame filter: "purification guard" for crude oil purification
The crude oil flowing out of the screw oil press contains a small amount of impurities, such as fine soybean meal particles, colloid, etc., which need to be purified by the z26 plate and frame filter. This filter can filter 85-100 kg of crude oil per hour. After the crude oil is transported to the plate and frame filter, under the action of pressure, the oil passes through the filter cloth, and the impurities are trapped on the surface of the filter cloth and in the gap between the plate and frame. The plate and frame filter increases the filtration area and improves the filtration efficiency through a multi-layer plate and frame structure. The impurity content of the filtered soybean oil is greatly reduced, and the transparency and purity are significantly improved, meeting the basic requirements for subsequent consumption or further refining.
The plate and frame filter is easy to operate, and the impurities after filtration are easy to clean. The filter cloth can be reused to reduce the cost of consumables. In the initial purification of crude oil, it helps to improve the quality of oil products in an economical and practical way.

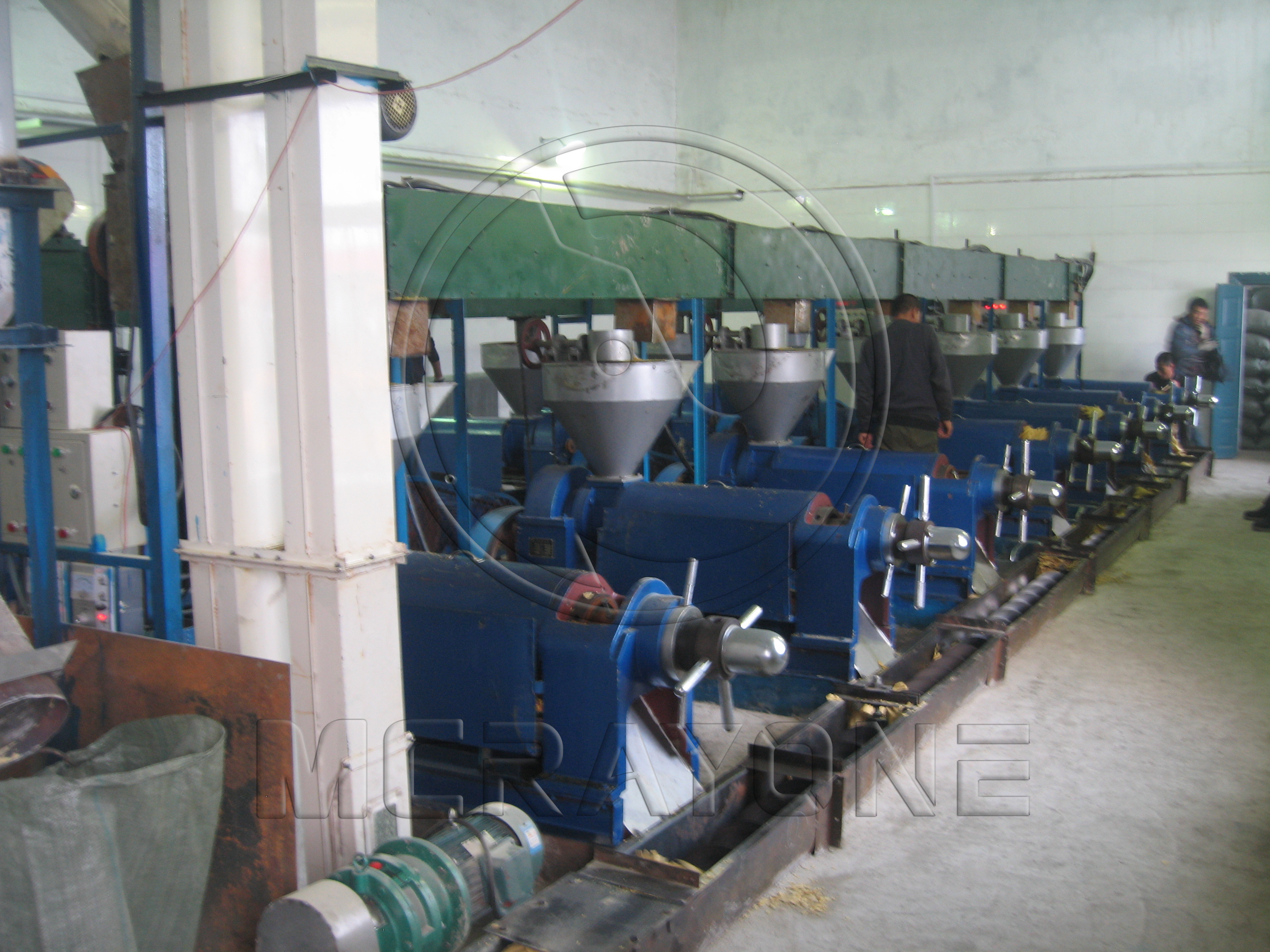

Production line collaboration: low cost to open the door to entrepreneurship
This production line organically combines the screw oil press with the plate and frame filter. The soybeans are squeezed by the screw oil press to extract crude oil, and the crude oil is purified by the plate and frame filter. The process is clear and concise. Only two machines are needed to build a basic soybean oil pressing production unit. For entrepreneurs who want to get involved in the oil processing industry, it is a high-quality choice to open the door to wealth with a low threshold.
Whether it is a small workshop producing household edible-grade soybean oil, or supplying basic oil raw materials to catering and food processing companies, this production line can achieve efficient conversion of soybeans into finished oil with stable equipment performance and simple production process. While meeting the market demand for pure soybean oil, it can create considerable profits for operators and help them seize the initiative in the oil processing track.
