Palm Twin Screw Oil Press Machine

Palm Oil Mill Plant

Palm oil is different from other conventional oils, because of the particularity of the oil, the general conventional oil press cannot extract palm fruit, and a specially designed palm fruit oil press should be used.

  Palm oil is a tropical woody vegetable oil. It is the vegetable oil with the largest production, consumption and international trade volume in the world. Together with soybean oil and rapeseed oil, it is known as the "three major vegetable oils in the world" and has a history of more than 5,000 years. Edible history.

  Palm oil is squeezed from the palm fruits of oil palm trees. The pulp and kernels produce palm oil and palm kernel oil respectively. The traditional concept of palm oil only includes the former. After refining and fractionating palm oil, products with different melting points can be obtained, which are widely used in the catering industry, food industry and oleochemical industry. Southeast Asia and Africa are the main producing areas of palm oil, accounting for about 88% of the world's total palm oil production. Indonesia, Malaysia and Nigeria are the world's top three producers. China has become the world's largest importer of palm oil, with palm oil consumption of approximately 6 million tons per year, accounting for 20% of the total market.

  Palm oil is different from other conventional oils, because of the particularity of the oil, the general conventional oil press cannot extract palm fruit, and a specially designed palm fruit oil press should be used. Palm twin-screw oil press machine is a kind of screw oil press machine. It is a palm oil press equipment with high oil yield, convenient operation and high degree of automation. It is suitable for small and medium-sized palm oil presses with a processing capacity of 1-2 tons per hour. Used in oil pressing plants, it is economical and has fast cost recovery. It is very popular with customers in Nigeria, Liberia, Cameroon, Ghana and other regions.

Palm fruit oil extraction process

Fresh palm fruit (FFB)→fermentation→fruit removal→conditioning (mashing)→pressing→crude oil purification→crude palm oil (CPO)

1.Load the fresh palm fruit bunches (FFB) into the sterilization vehicle and spray direct steam for high-temperature short-term sterilization. The steam flows through the fruit room to heat all the fruits, reduce the activity of bacteria and enzymes, avoid the increase of free fatty acids (FFA), and improve the quality of crude oil.

2.Transport the sterilized brown fruit bunches (FFB) into the drum separator. The separator rotates to separate the empty fruit rooms and fresh brown fruits. The separated empty fruit rooms are sent to be crushed for production. Fertilizer is returned to the orchard.

3.The palm fruits are tempered and crushed by the equipment, and then sent to the twin-screw press to press and produce oil. Then the liquid part containing sand, moisture, and oil is sent to the purifier to separate the crude palm oil.

4.The solid part coming out of the oil press is sent to the pneumatic vertical separation column by the conveyor belt, and the fiber and fruit core are separated by the action of wind.

5.The fiber is transported to the boiler for use as fuel.

6.The polished core is transported to a container for storing the core, and then crushed to separate the kernels.

Machine Parameter:

Item

Specification

AY-1.0

Capacity :1-2t/h

Voltage:380v 50hz Three phases

Power: 7.5kw

Hydraulic station power: 1.5kw

Wooden box size: 2400*700*800mm

Gross weight: 574kg

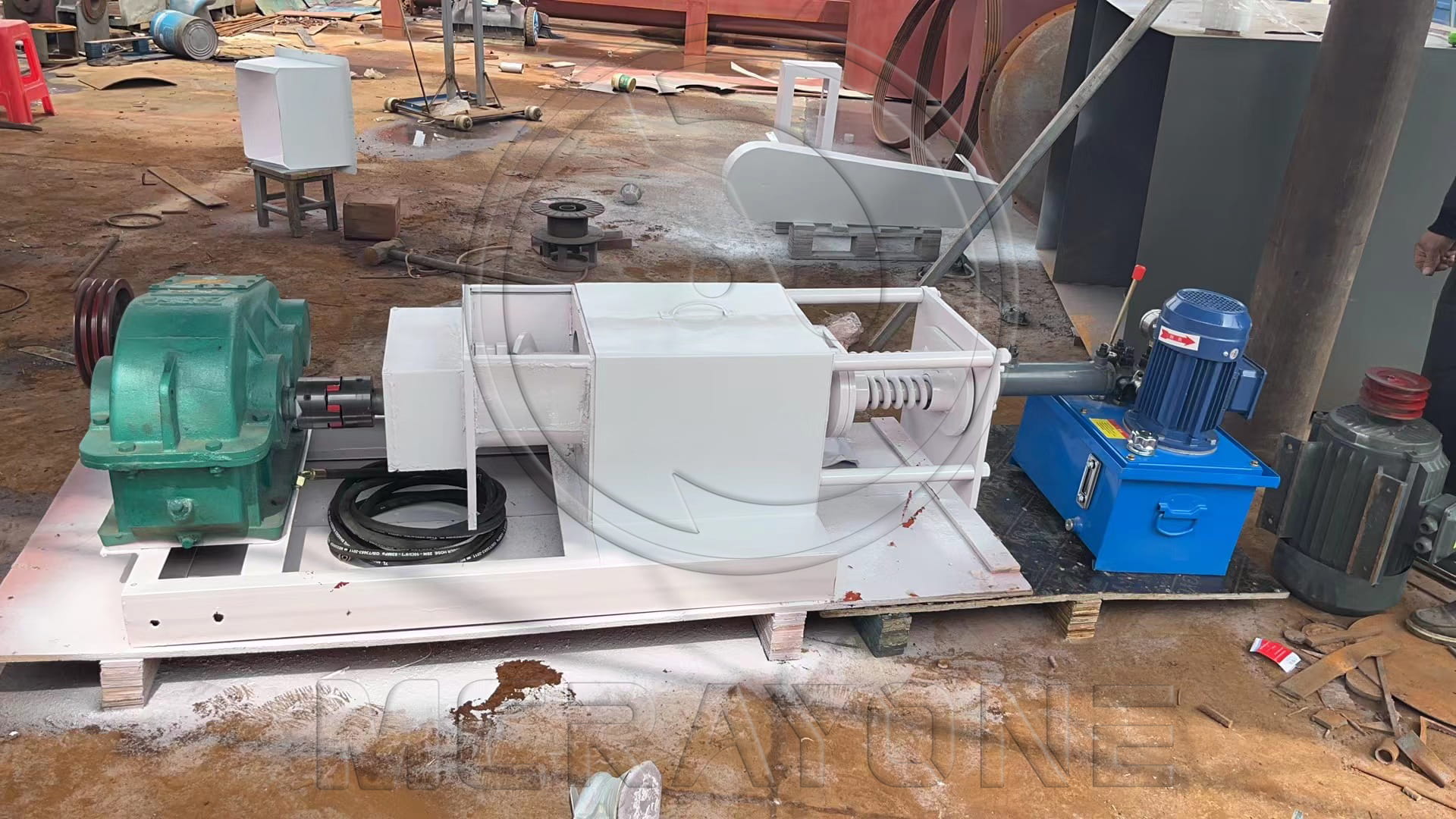

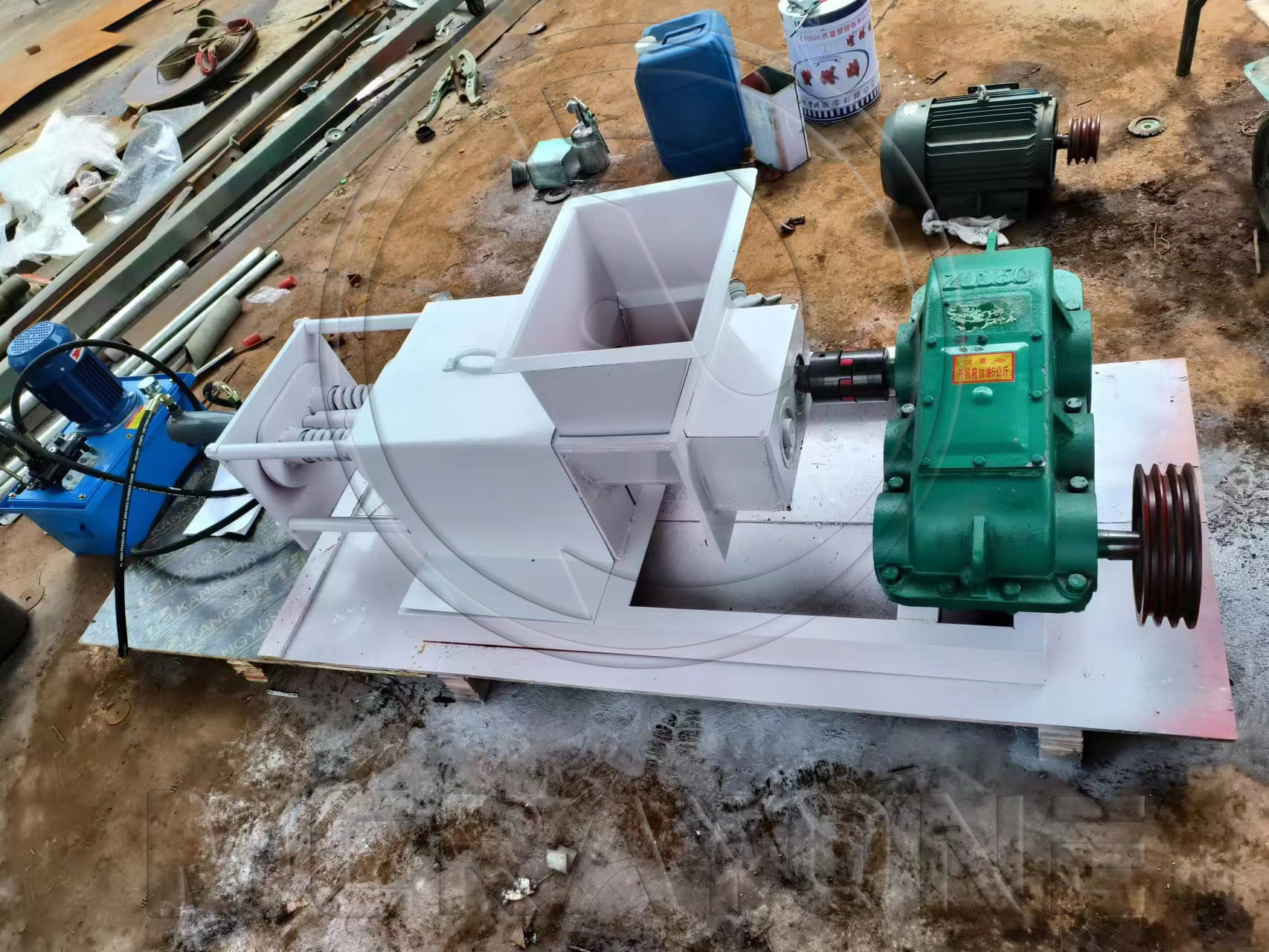

Detail pictures

1.The two pressing screws are tightly interlocked in the pressing chamber and are not suitable for smooth chamber. The pressing effect is good without slag accumulation and the oil yield rate is high;

2.The hydraulic control system intelligently controls the palm oil pressing process to make the pressing process proceed smoothly;

3.The oil extraction process is automated, saving manpower and consuming less energy;

4.Guaranteed quality and long service life.

Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.

In the course of our company's decades of development, we have obtained multiple official certificates, such as :



  • ISO-9001 international quality system certification
  • CE certificate
  • China's AAA credit enterprises
  • Certification for honoring contracts and keeping promises
  • Certificate of Integrity management demonstration unit
  • Certificate of Quality Service Integrity Unit
  • Enterprise Credit Rating Certificate



Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
