High efficiency palm fruit oil press

High efficiency palm fruit oil press

Palm fruits is an important oil crop. The oil content of palm fruits is particularly high, and both palm fruit and palm kernel can be squeezed for oil. The oil content of palm fruit is 46%-50%, and the oil content of palm kernel is 50%. -55%.

Palm oil squeezed by palm fruit oil press is the most commonly used edible oil in Nigeria, Malaysia, Indonesia, Liberia, and Congo, so palm oil production equipment is extremely popular locally.

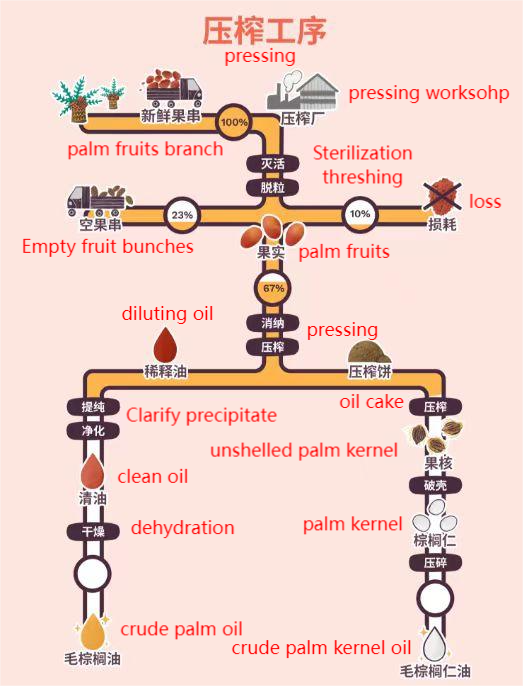

Palm Fruit Oil Pressing Process

Steam             Steam

↓                 ↓

Fresh palm fruit (FFB) → sterilization → palm fruit threshing →

↓                                      ↓

Return to the orchard for fertilizer←Empty fruit bunches

conditioning (digesting) → pressing → crude oil purification → crude palm oil (CPO)

↓

Fiber and core→Reprocessing→Palm kernel oil

1. Load the fresh palm fruit bunches (FFB) into the sterilization vehicle and spray direct steam for high-temperature short-term sterilization. The steam flows through the fruit room to heat all the fruits, reduce the activity of bacteria and enzymes, avoid the increase of free fatty acids (FFA), and improve the quality of crude oil.
2. Transport the sterilized palm fruit bunches (FFB) into the drum separator. The separator rotates to separate the empty fruit rooms and fresh palm fruit. The separated empty fruit rooms are sent to be crushed for produce fertilizer is returned to the orchard.
3. The palm fruits are tempered and crushed by equipment, and then sent to the press to press and produce oil. Then the liquid part containing sand, water, and oil is sent to the purifier to separate the crude palm oil.
4. The solid part coming out of the oil press is sent to the pneumatic vertical separation column by the conveyor belt, and the fiber and fruit core are separated by the action of wind.
5. The fiber is transported to the boiler and used as fuel.
6. The polished core is transported to a container for storing the core, and then crushed to separate the kernels.

Processed crude palm oil mainly contains: solid sediment, water and oil. Among them, the solid part is separated by a vibrating rotary screen, and the crude palm oil is decomposed by static methods. The heated crude palm oil is sent to a vacuum dryer through an oil pump to remove moisture, and then sent to a crude oil tank for storage. The sediment is treated and discharged into the sewage treatment channel. The solid matter is used to fertilize the fields. The steam boiler is mainly used to provide steam for power generation, sterilization and heating. The fuel used in the steam boiler is the fiber and fruit separated from the palm oil manufacturing process shell.

  In the production process, for large and small industrial customers, the primary equipment is the Palm Fruit Oil Press.

Palm Oil Press Machine Overview

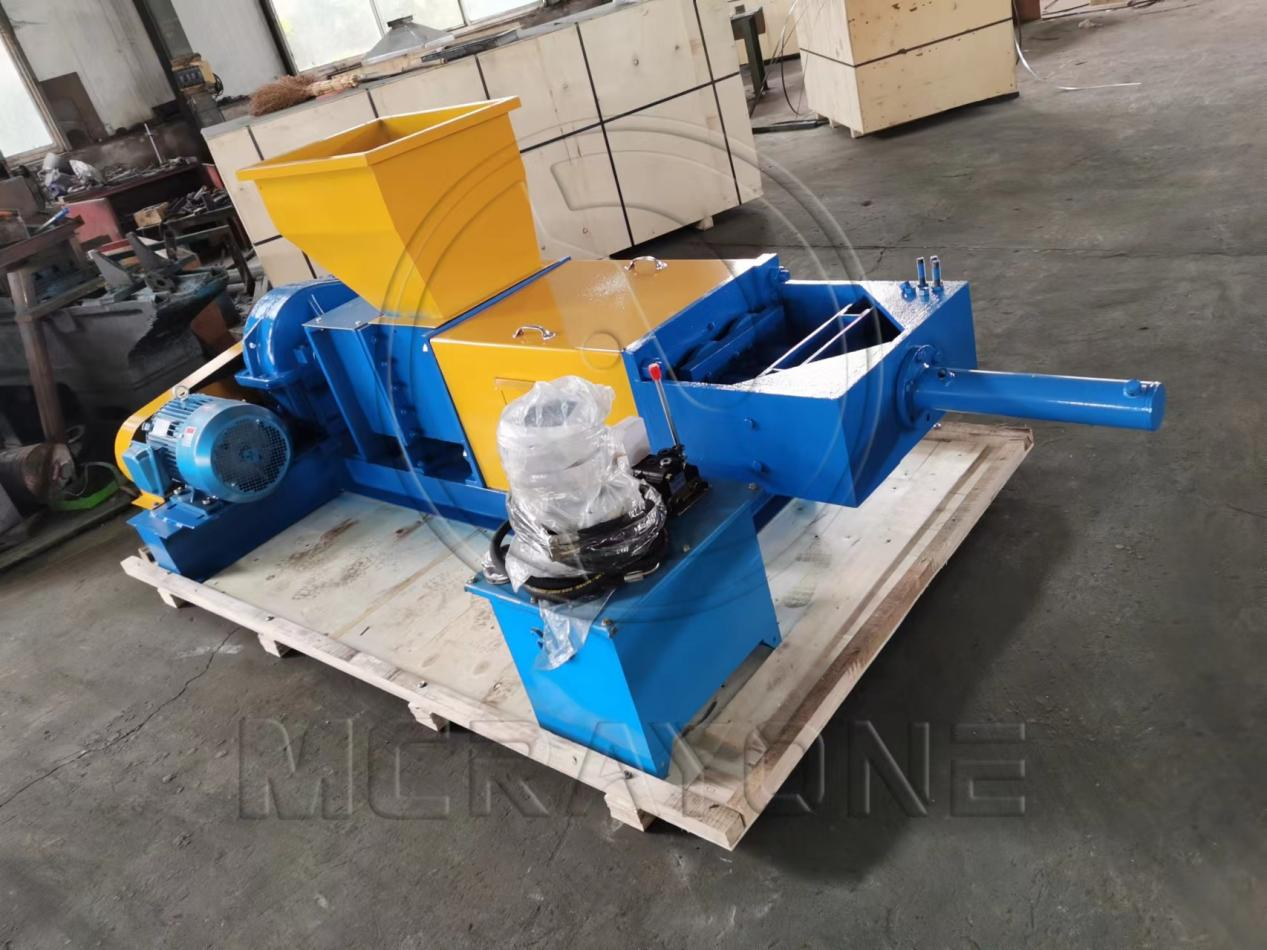

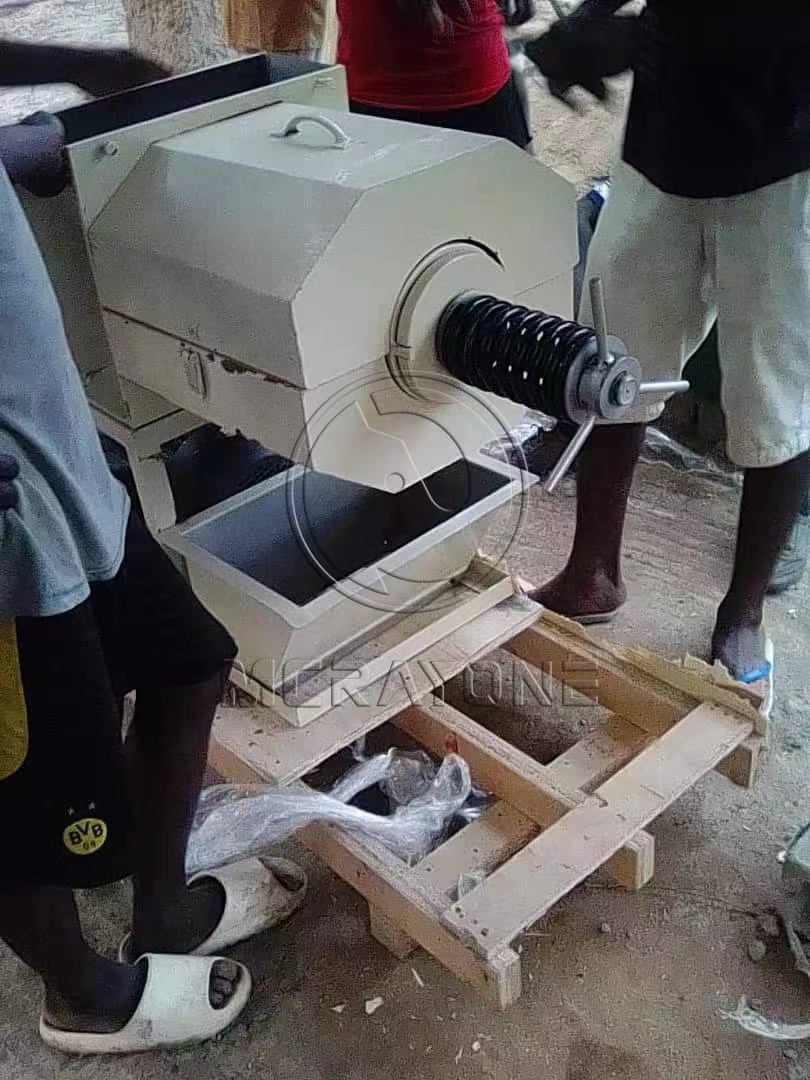

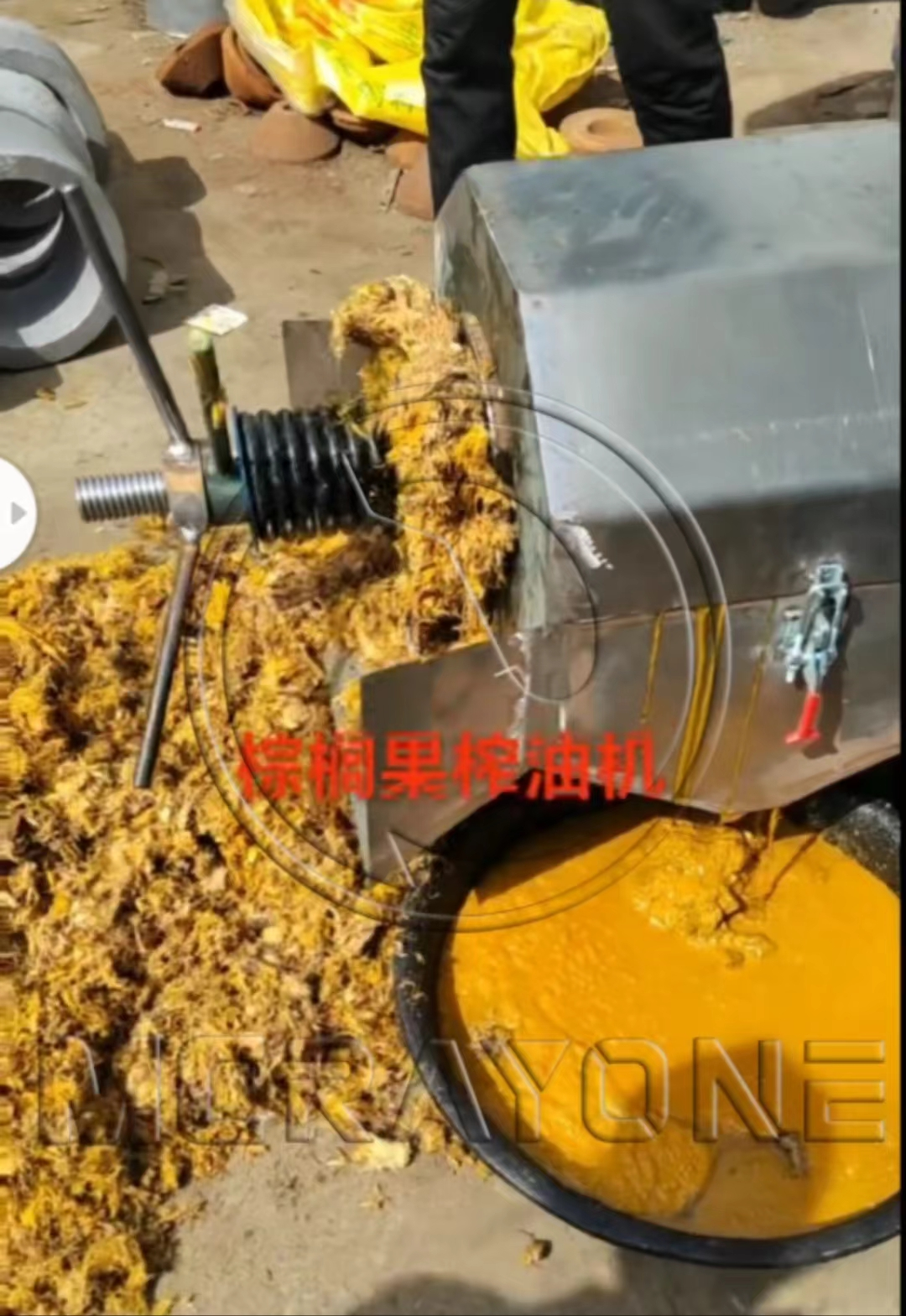

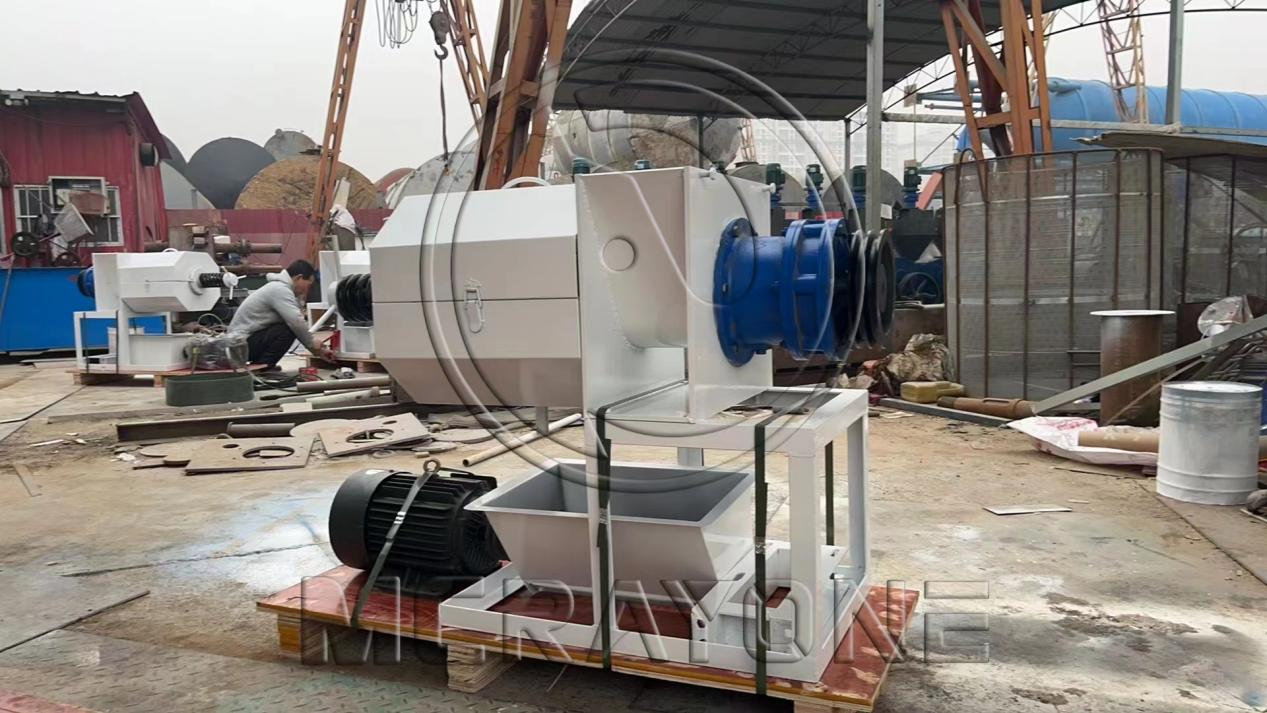

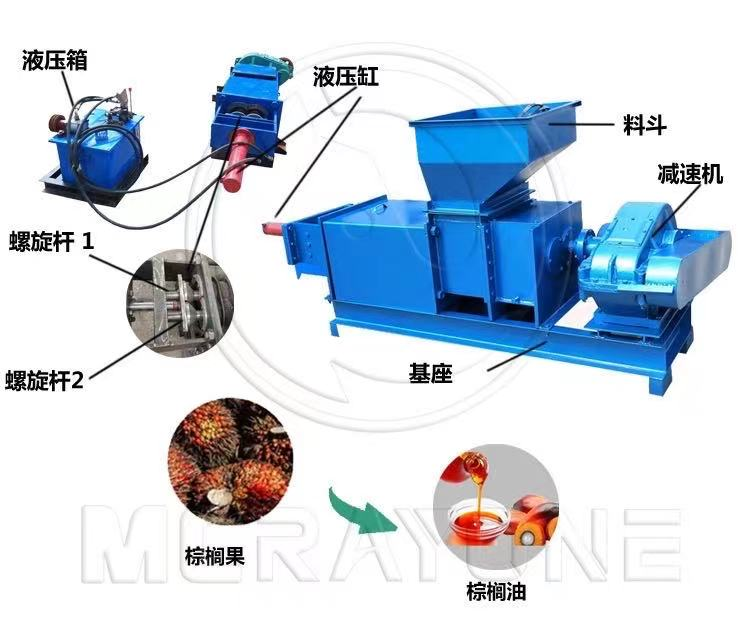

The palm oil press is a palm oil press equipment that is easy to operate, easy to maintain, and has a high degree of automation. It is suitable for small and medium-sized palm oil press plants of various sizes and different processing capacities. It consists of a feed hopper, a gear box, a pressing screw, a motor, a frame and other components. Its working principle is to squeeze out the oil by using palm fruits in the gear box through the continuous extrusion of the pressing screw.

Features:

1. Scientific design, reasonable structure, high pressing efficiency;
2. Small footprint and low investment cost, suitable for small palm oil mills;
3. Equipped with a diesel engine or generator to ensure the normal operation of the palm oil press;
4. The equipment is made of excellent material, has good wear resistance and has a long service life.

Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.

In the course of our company's decades of development, we have obtained multiple official certificates, such as :

• ISO-9001 international quality system certification
• CE certificate
• China's AAA credit enterprises
• Certification for honoring contracts and keeping promises
• Certificate of Integrity management demonstration unit
• Certificate of Quality Service Integrity Unit
• Enterprise Credit Rating Certificate

Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
