Palm Oil Mill Plant
After the above primary stage of extraction, the crude palm oil and crude palm kernel oil are sent for refining, and after removing free fatty acids, coloring, and odors, they become salad grade fats and oils - Refined Palm Oil (RBD PO) and Palm Oil Salad
What machinery is needed to produce palm fruit oil?
Crude palm oil (CPO) and palm meal (PE) can be obtained from the palm fruit through the process of cooking,mashing and pressing. Palm oil fruits contain two different kinds of oil, palm oil from the fruit; and palm kernel oil from the palm seeds (kernel). All of these products are effectively used in food, chemical, agriculture and other fields. It can be said that palm is a good economic plant. After the above primary stage of extraction, the crude palm oil and crude palm kernel oil are sent for refining, and after removing free fatty acids, coloring, and odors, they become salad grade fats and oils - Refined Palm Oil (RBD PO) and Palm Oil Salad Oil (RBD PKO). In addition, according to the needs of different users, palm oil can be further fractionated and processed to form Palm Oleic Acid (PFAD), Palm Liquid Oil (OLEAN for short), Palm Stearin (STEARINE or ST for short).

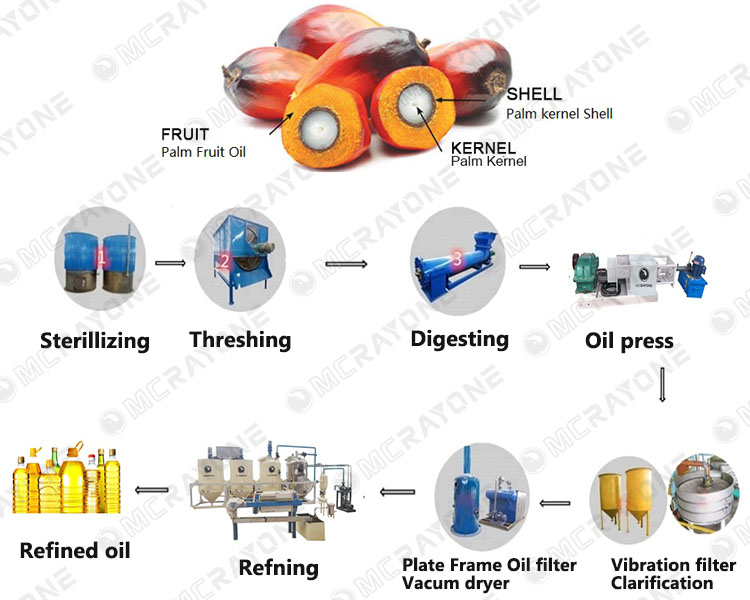

The process is as follows:
(1) First, the fresh palm fruit bunches are sterilized with steam. The sterilization can effectively inhibit the activity of splitting enzymes, ensure the quality of palm oil, reduce oil loss, and make the palm fruit soft and easy to separate. The specific method is to put fresh palm fruits into a sterilization tank, then use steam to carry out the cooking and fermentation process.
(2) Send the sterilized palm fruits to the threshing machine for threshing. After the threshing is completed, Place in a mashing machine for mashing; palm fruit should be mashed before pressing in order to press out the oil more effectively.
(3) Send the defruited and mashed palm fruits to a double-screw oil press for pressing to obtain crude oil;
(4) Filter and separate the crude oil through a vibrating separation screen. After removing coarse residues such as fibers, the clean oil is stored in the clarified oil tank, and then passed through the oil purification separator for further waste purification;
(5) The pure oil obtained after separation and filtration is heated to a certain temperature by a plate heater, and then the residue in the oil is drained by a vacuum dryer to obtain the finished oil.
Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.
We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.
Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.
Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.
In the course of our company's decades of development, we have obtained multiple official certificates, such as :
Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
