How palm oil is extracted
The usual process of extraction and isolation of vegetable oils (such as olive or palm oil, tea seed oil, etc.) involves extracting the oily plant parts (seeds, fruits, shells) and then pressing and separating them.

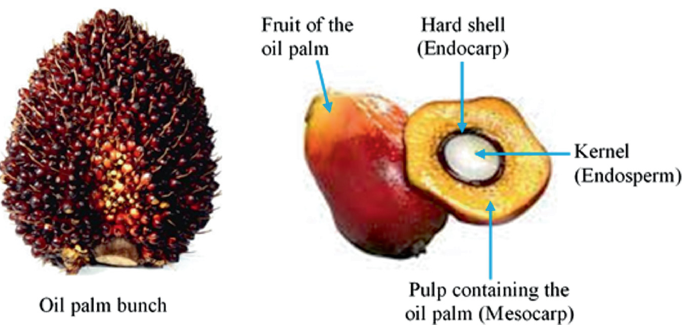

In the case of palm oil production, we distinguish between red palm oil (from pulp pressing); the other is palm kernel oil (palm kernel as raw material). The first of the two oils is more common and is what this article is about. Palm oil can be effectively used in food, chemical and agricultural applications. It can be said that palm trees are a good economic crop.

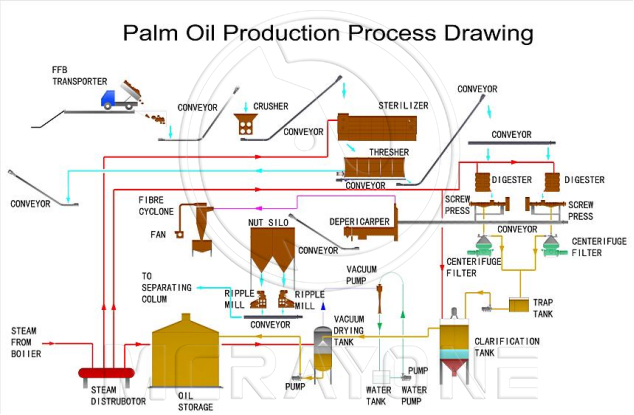

The red palm oil production process is divided into three main parts: crushing, refining and fractionation. Crushing is the process of extracting palm oil from the palm fruit. Fresh palm fruit bunches are sterilized, defruited, crushed, and pressed to obtain crude palm oil (CPO); at the same time, during the pressing process, an oil cake mixed with palm fiber and palm kernel is produced. Some customers will separate palm kernels and then produce the palm kernel oil (PKO).
More specifically, in the sterilization section, the palm fruit bunches will be placed in a horizontal or vertical sterilizer and heated for 90-120 minutes. The purpose of this step is to destroy lipase and avoid an increase in free fatty acid content in the oil; high-temperature sterilization can make the fruit soft and facilitate mechanical threshing. After that, it is the threshing section which aims to separate the oil palm fruit from the fruit string through strong vibration. The fruit threshing equipment is a drum thresher. Before pressing step, we recommand to mashing the palm fruit (Digestion), in order to tear the skin of the fruit, separate the pulp from the core and mash thefruit, while heating to make the pulp soft and destroy the pulp cell structure, which is conductive to the precipitation of oil from thefruit. After the above steps, the palm pulp is sent to the screw oil press, and the palm oil is divided into: oil, water, a mixture of solid impurities, and cake (fiber and core). Under the action of screw pressure, the fat is separated from thefruit. The liquid part flows out from the lower port, is filtered and sent to the vacuum dehydration tank to obtain crude palm oil.

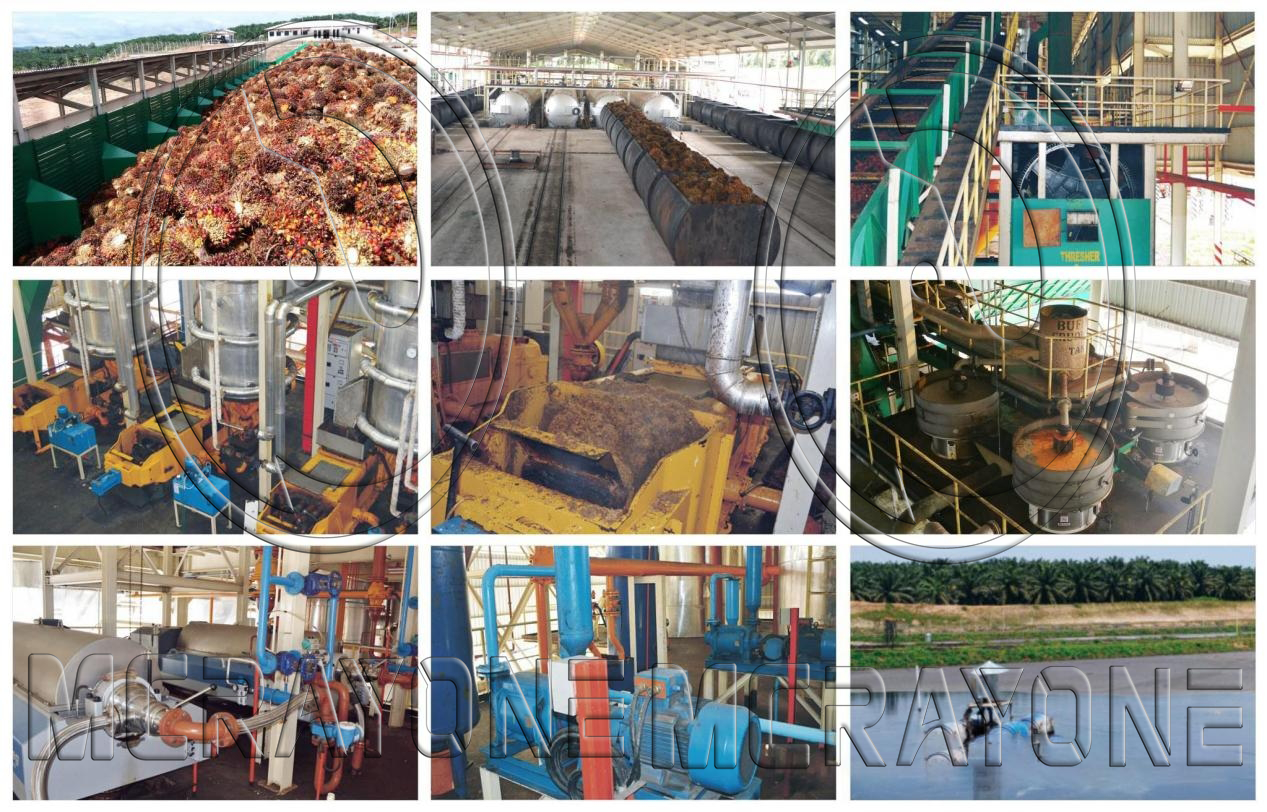

As a professional manufacturer of palm oil pressing and refining equipment, we have more than 40 years of R&D experience and are committed to providing our customers with the highest quality products, safety and better performance. The following are some cases we have implemented:
Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.
We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.
Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.
Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.
In the course of our company's decades of development, we have obtained multiple official certificates, such as :
Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
